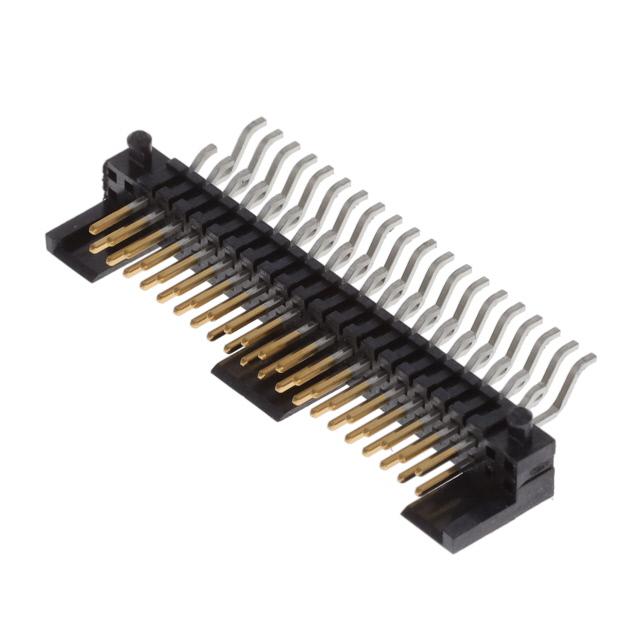

Samtec Inc. FSH-120-04-L-DH-SL

FSH-120-04-L-DH-SL Samtec Inc.
Samtec Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
40
Contact Finish - Post:
Tin
edacadModel:
FSH-120-04-L-DH-SL Models
Overall Contact Length:
-
title:
FSH-120-04-L-DH-SL
Insulation Height:
0.155" (3.94mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Unshrouded
Applications:
-
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/7257957
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Header
Contact Length - Mating:
0.145" (3.70mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
2.6A per Contact
Contact Length - Post:
-
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
End Shrouds, Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
Tiger Eye™ FSH
Packaging:
Tube
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
FSH-120
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is FSH-120-04-L-DH-SL. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 40. It has possible tin contact post finishing. 0.155" (3.94mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features unshrouded. It comes in 2 of rows. It has a typical square shape. It carries 0.050" (1.27mm) of row spacing. header Connector type offer robust functionality. It is 0.145" (3.70mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 10.0µin (0.25µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 6 weeks standard lead time. Additionally, the product's output is 2.6a per contact. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include end shrouds, solder retention. The product is available in surface mount, right angle configuration. The product tiger eye™ fsh, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to fsh-120, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
FSH Series Datasheet(Datasheets)
pdf icon
FSH Datasheet(Datasheets)
pdf icon
FSH Series Other Related Documents 01(Other Related Documents)
pdf icon
FSH,SFMH Drawing(Product Drawings)
