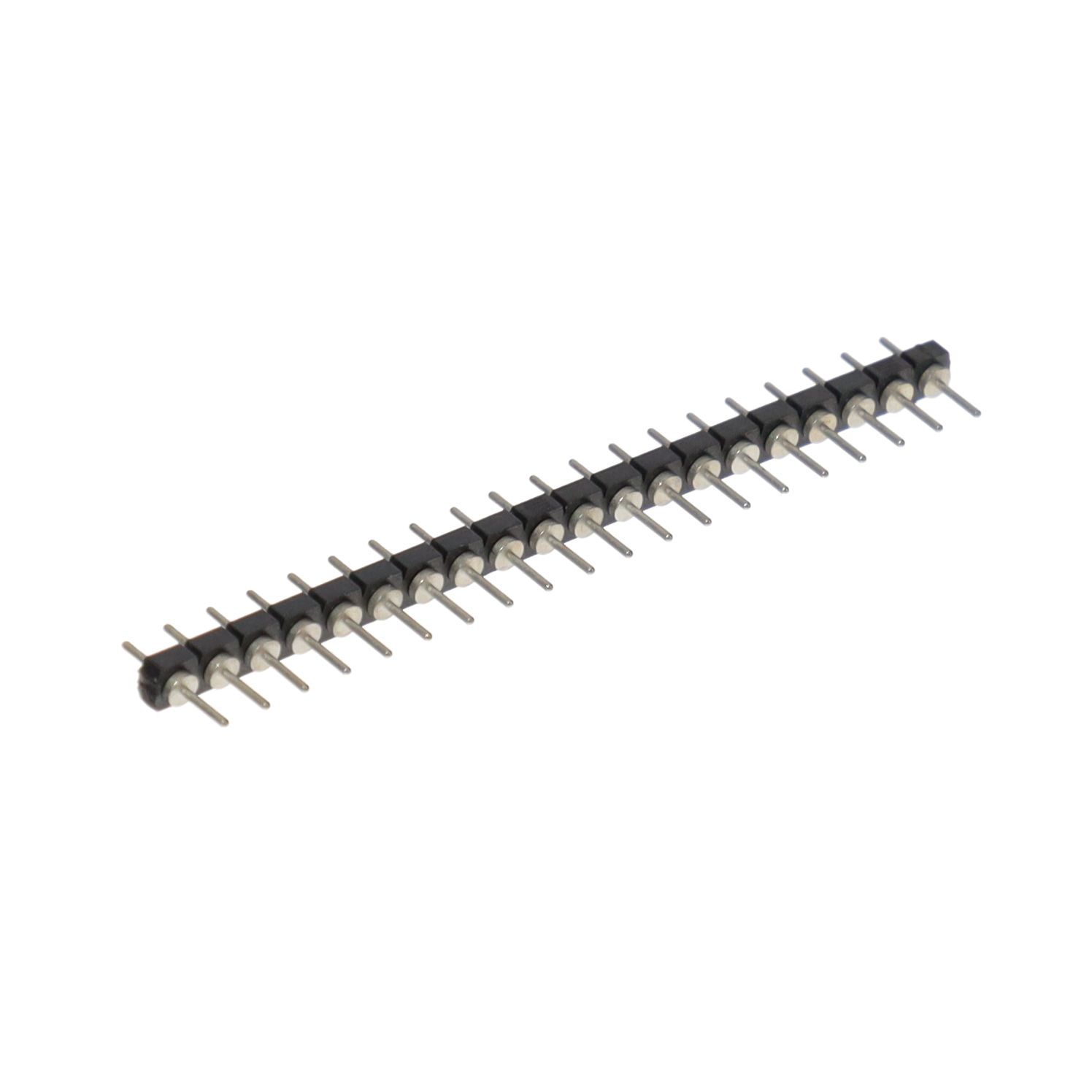

This is manufactured by Samtec Inc.. The manufacturer part number is BBL-120-T-E. It has nice contact finishing of tin. Additionally, the product is designed with board to board Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features 50.0µin (1.27µm) of post thickness. The product carries possible position value of 20. It has possible nickel contact post finishing. The product has a 0.300" (7.62mm) of overall contact lentgh. 0.070" (1.78mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features unshrouded. It comes in 1 of rows. It has a typical circular shape. header Connector type offer robust functionality. It is 0.105" (2.67mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. 0.125" (3.18mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product bbl, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. It has typical contact type of male pin. Moreover, it corresponds to bbl-120, a base product number of the product. The product is designated with the ear99 code number.
BBL-1/SL-1 02/Jan/2018(PCN Design/Specification)
BBL Through Hole Footprint(Datasheets)
BBx, BDL, BHS Series Datasheet(Datasheets)
Bxx-1xx-x-x-x Drawing(Product Drawings)
