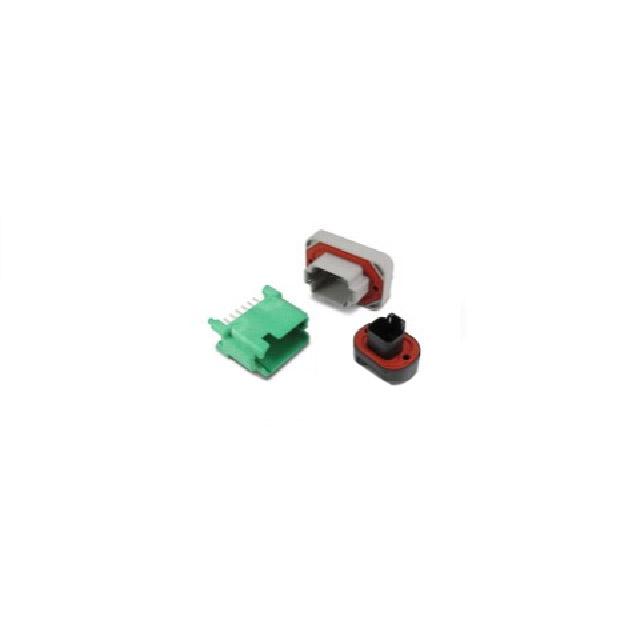

TE Connectivity Deutsch Connectors DT13-12PD

DT13-12PD TE Connectivity Deutsch Connectors
TE Connectivity Deutsch Connectors

Product Information

Contact Finish - Mating:
Nickel
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
12
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
1.388" (35.26mm)
Voltage Rating:
250VDC
REACH Status:
REACH Affected
edacadModel:
DT13-12PD Models
Applications:
Automotive
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/7220210
Insulation Color:
Brown
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA46), Nylon 4/6, Glass Filled
Package:
Bulk
Row Spacing - Mating:
0.250" (6.35mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
9 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.122" (3.10mm)
Pitch - Mating:
0.175" (4.44mm)
Ingress Protection:
IP68/IP6K9K
Features:
Mounting Flange
Mounting Type:
Panel Mount, Through Hole, Right Angle
Series:
DT
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
DT13
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Deutsch Connectors. The manufacturer part number is DT13-12PD. It has nice contact finishing of nickel. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 12. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 1.388" (35.26mm) of insulation height. Moreover, the product has a nominal 250vdc voltage rating. In addition, it is reach affected. The product is widely employed in automotive. It comes in 2 of rows. In addition, brown is the insulation color of the product. It has a typical circular shape. It has a robust polyamide (pa46), nylon 4/6, glass filled insulation material. It is shipped in bulk package . It carries 0.250" (6.35mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is not applicable. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 9 weeks standard lead time. 0.122" (3.10mm) is the given possible contact length (post) values. It has 0.175" (4.44mm) of pitch-mating value. It is IP rated with ip68/ip6k9k. The splendid features of the product include mounting flange. The product is available in panel mount, through hole, right angle configuration. The product dt, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to dt13, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
DT1y-yyPy - Product Improvement 29/APR/2020(PCN Design/Specification)
