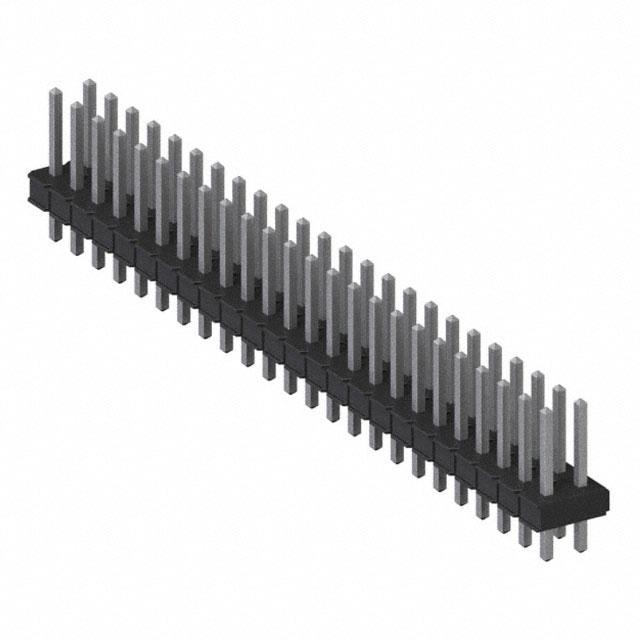

3M 929836-01-24

929836-01-24 3M
3M

Product Information

Contact Finish - Mating:
Tin-Lead
Style:
Board to Board
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
48
Contact Finish - Post:
-
Shrouding:
Unshrouded
Overall Contact Length:
0.445" (11.30mm)
Insulation Height:
0.100" (2.54mm)
Voltage Rating:
-
REACH Status:
REACH Affected
edacadModel:
929836-01-24 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/7598681
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Package:
Bulk
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.235" (5.97mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
2.5A
Contact Length - Post:
0.110" (2.79mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
929
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
929836
ECCN:
EAR99
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 929836-01-24. It has nice contact finishing of tin-lead. Additionally, the product is designed with board to board Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 48. Furthermore, a bespoke product features unshrouded. The product has a 0.445" (11.30mm) of overall contact lentgh. 0.100" (2.54mm) of insulation height. In addition, it is reach affected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polybutylene terephthalate (pbt), polyester, glass filled insulation material. It is shipped in bulk package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.235" (5.97mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 2.5a. 0.110" (2.79mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product 929, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 929836, a base product number of the product. The product is designated with the ear99 code number.
