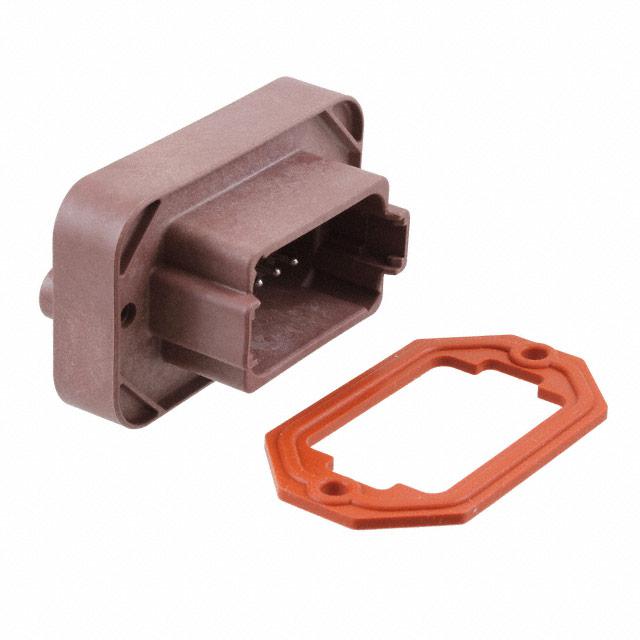

TE Connectivity Deutsch Connectors DT15-12PD

DT15-12PD TE Connectivity Deutsch Connectors
DT15-12PD
TE Connectivity Deutsch Connectors

Product Information

Contact Finish - Mating:
Nickel
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
12
Contact Finish - Post:
Tin
edacadModel:
DT15-12PD Models
Overall Contact Length:
-
Insulation Height:
1.185" (30.10mm)
Insulation Color:
Brown
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/6566593
Contact Shape:
Circular
Mated Stacking Heights:
-
Voltage Rating:
250VDC
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
10 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.122" (3.10mm)
Pitch - Mating:
0.175" (4.44mm)
Features:
Mounting Flange
Mounting Type:
Panel Mount, Through Hole
Series:
DT
Packaging:
Bulk
Insulation Material:
Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
DT15
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Deutsch Connectors. The manufacturer part number is DT15-12PD. It has nice contact finishing of nickel. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 12. It has possible tin contact post finishing. 1.185" (30.10mm) of insulation height. In addition, brown is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive. It comes in 2 of rows. It has a typical circular shape. Moreover, the product has a nominal 250vdc voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is not applicable. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 10 weeks standard lead time. 0.122" (3.10mm) is the given possible contact length (post) values. It has 0.175" (4.44mm) of pitch-mating value. The splendid features of the product include mounting flange. The product is available in panel mount, through hole configuration. The product dt, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa46), nylon 4/6, glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to dt15, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
DT15 Tool Modification 01/Mar/2018(PCN Assembly/Origin)
pdf icon
Multiple Devices Product Improvement 11/Oct/2017(PCN Design/Specification)
pdf icon
DT1y-yyPy - Product Improvement 29/APR/2020(PCN Design/Specification)
pdf icon
Multiple Devices Packaging 15/May/2019(PCN Packaging)
