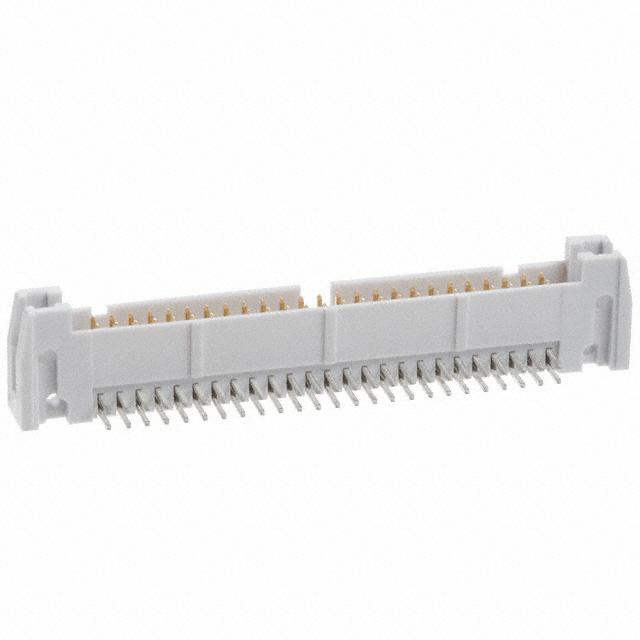

Assmann WSW Components AWH50A-0202-T-R

AWH50A-0202-T-R Assmann WSW Components
Assmann WSW Components

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
Operating Temperature:
-40°C ~ 105°C
Number of Positions:
50
Contact Finish - Post:
Tin
edacadModel:
AWH50A-0202-T-R Models
Overall Contact Length:
-
Insulation Height:
0.669" (17.00mm)
Insulation Color:
Gray
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/924575
Contact Shape:
Square
Contact Finish Thickness - Mating:
Flash
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
3A
Contact Length - Post:
0.150" (3.81mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole, Right Angle
Series:
-
Packaging:
Tray
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Contact Material:
Brass
Base Product Number:
AWH 50A
ECCN:
EAR99
Checking for live stock

This is manufactured by Assmann WSW Components. The manufacturer part number is AWH50A-0202-T-R. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 50. It has possible tin contact post finishing. 0.669" (17.00mm) of insulation height. In addition, gray is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, flash is the "Contact Finish Thickness - Mating" of the product. It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 3a. 0.150" (3.81mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole, right angle configuration. In addition, tray is the available packaging type of the product. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. The product is made from sturdy brass materials. Moreover, it corresponds to awh 50a, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
AWHxxA-0xx2-T Drawing(Product Drawings)
pdf icon
Assmann RoHS Cert(Environmental Information)
