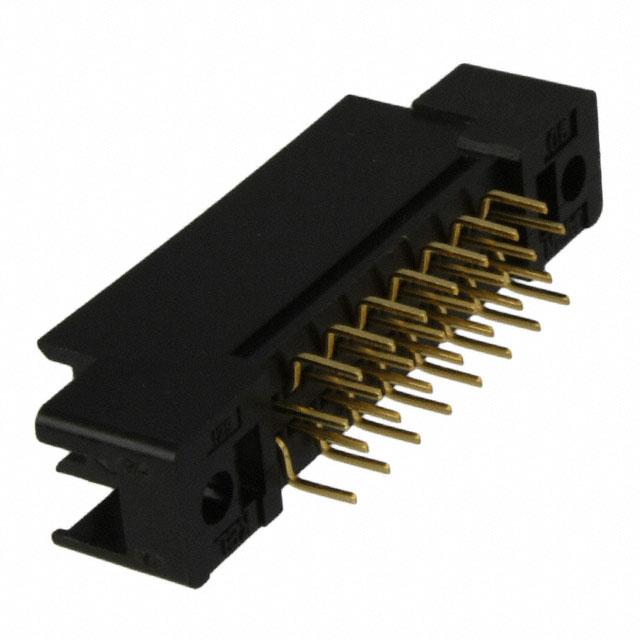

3M P50E-030P1-S1-EA

P50E-030P1-S1-EA 3M
3M

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 85°C
Number of Positions:
30
Contact Finish - Post:
Gold
edacadModel:
P50E-030P1-S1-EA Models
Overall Contact Length:
-
Insulation Height:
0.421" (10.70mm)
Insulation Color:
Black
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2340954
Contact Shape:
-
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Plug
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Center Strip Contact
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
14 Weeks
Current Rating (Amps):
0.5A
Contact Length - Post:
0.118" (3.00mm)
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
Pak 50, P50E
Packaging:
Bulk
Insulation Material:
Polyamide (PA), Nylon, Glass Filled
Contact Material:
Copper Alloy
Base Product Number:
P50E
ECCN:
EAR99
Checking for live stock

This is manufactured by 3M. The manufacturer part number is P50E-030P1-S1-EA. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 85°c operating temperature range. The product carries possible position value of 30. It has possible gold contact post finishing. 0.421" (10.70mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. However, 10.0µin (0.25µm) is the "Contact Finish Thickness - Mating" of the product. plug Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of center strip contact. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 14 weeks standard lead time. Additionally, the product's output is 0.5a. 0.118" (3.00mm) is the given possible contact length (post) values. It has 0.050" (1.27mm) of pitch-mating value. The product is available in through hole configuration. The product pak 50, p50e, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa), nylon, glass filled insulation material. The product is made from sturdy copper alloy materials. Moreover, it corresponds to p50e, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
P25/P50 - obsolete 28/MAR/2006(PCN Other)
pdf icon
Interconnect Catalog(Datasheets)
pdf icon
Interconnect Mating Guide(Other Related Documents)
