Preci-Dip 832-80-008-30-001191

832-80-008-30-001191 Preci-Dip
832-80-008-30-001191
Preci-Dip

Product Information

Shrouded/Unshrouded:
Unshrouded
Current Rating:
3.0A
Mounting Type:
Surface Mount
Body Orientation:
Straight
Termination Method:
Solder
Number of Rows:
2
Contact Plating:
Tin
Pitch:
2.0mm
Number of Contacts:
8
Contact Material:
Brass
Contact Finish - Mating:
Tin
Style:
Board to Board
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
8
Overall Contact Length:
-
Insulation Height:
0.110" (2.79mm)
Voltage Rating:
150VDC
REACH Status:
REACH Unaffected
Shrouding:
Unshrouded
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Package:
Tube
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
0.141" (3.60mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
20 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Pick and Place
Mounting Type:
Surface Mount
Series:
832
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
832-80
ECCN:
EAR99
RoHs Compliant
Checking for live stock

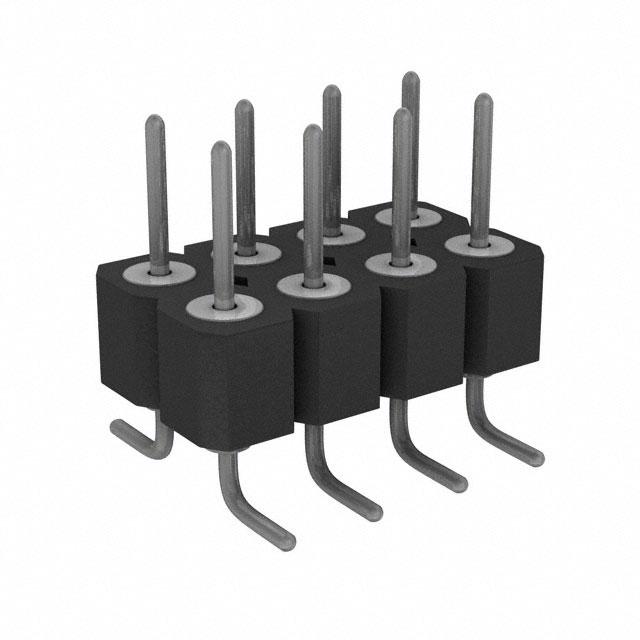

This is manufactured by Preci-Dip. The manufacturer part number is 832-80-008-30-001191. It is supplied as unshrouded. The product has a current rating of 3.0a. The product is available in surface mount configuration. It has straight body orientation. It allows solder termination method. It comes in 2 of rows. The high-quality tin is used as contact plating material. Moreover, the product is 2.0mm. The product contains 8 contacts. The product is made from sturdy brass materials. It has nice contact finishing of tin. Additionally, the product is designed with board to board Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 8. 0.110" (2.79mm) of insulation height. Moreover, the product has a nominal 150vdc voltage rating. In addition, it is reach unaffected. Furthermore, a bespoke product features unshrouded. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical circular shape. It has a robust liquid crystal polymer (lcp), glass filled insulation material. It is shipped in tube package . It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. It is 0.141" (3.60mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 20 weeks standard lead time. Additionally, the product's output is 3a. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include pick and place. The product 832, is a highly preferred choice for users. It has typical contact type of male pin. Moreover, it corresponds to 832-80, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
"Hard metric" PCB pin connectors, SMD mount Data Sheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 832-80-008-30-001191 on website for other similar products.
We accept all major payment methods for all products including ET13439770. Please check your shopping cart at the time of order.
You can order Preci-Dip brand products with 832-80-008-30-001191 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Preci-Dip 832-80-008-30-001191. You can also check on our website or by contacting our customer support team for further order details on Preci-Dip 832-80-008-30-001191.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13439770 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Preci-Dip" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13439770.
Yes. We ship 832-80-008-30-001191 Internationally to many countries around the world.
