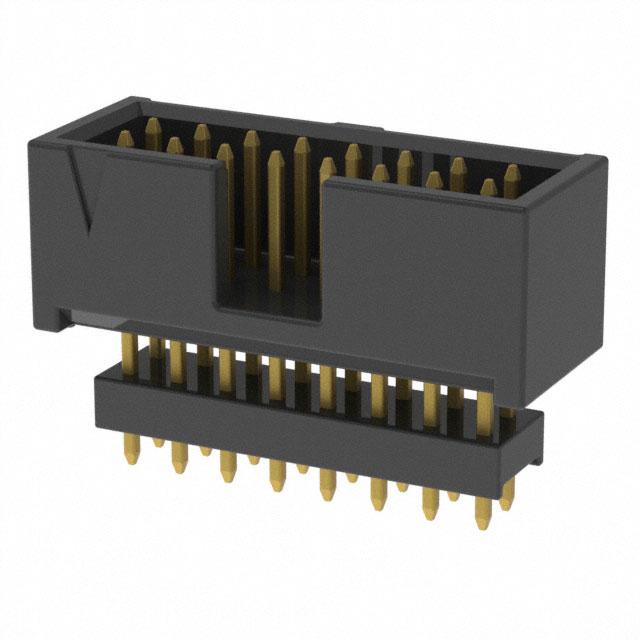

Samtec Inc. ZSS-108-01-G-D-540

ZSS-108-01-G-D-540 Samtec Inc.
Samtec Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
3.00µin (0.076µm)
Number of Positions:
16
Contact Finish - Post:
Gold
edacadModel:
ZSS-108-01-G-D-540 Models
Overall Contact Length:
0.630" (16.00mm)
Insulation Height:
0.540" (13.72mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2686152
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header, Elevated
Contact Length - Mating:
0.250" (6.35mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
5 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.090" (2.29mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
Flex Stack, ZSS
Packaging:
Bulk
Insulation Material:
Polyester, Glass Filled
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
ZSS-108
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is ZSS-108-01-G-D-540. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features 3.00µin (0.076µm) of post thickness. The product carries possible position value of 16. It has possible gold contact post finishing. The product has a 0.630" (16.00mm) of overall contact lentgh. 0.540" (13.72mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. It carries 0.100" (2.54mm) of row spacing. header, elevated Connector type offer robust functionality. It is 0.250" (6.35mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 10.0µin (0.25µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 5 weeks standard lead time. Additionally, the product's output is 3a. 0.090" (2.29mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole configuration. The product flex stack, zss, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyester, glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to zss-108, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
ZSS Datasheet(Datasheets)
pdf icon
.100" Shrouded Elevated Terminal Strip(Datasheets)
pdf icon
.100" Shrouded Elevated Terminal Strip(Other Related Documents)
pdf icon
ZSS Series Drawing(Product Drawings)
