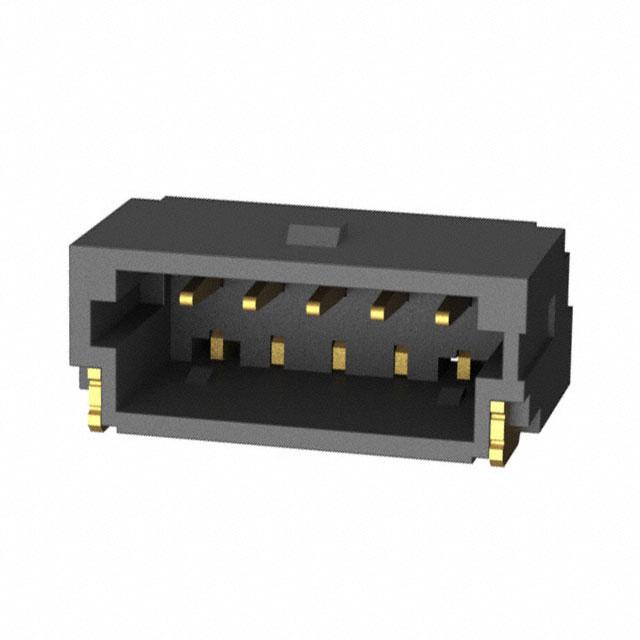

Samtec Inc. T1M-05-GF-S-RA-TR

Enrgtech Part No: ET13388532
|
Manufacturer Part No:
T1M-05-GF-S-RA-TR
|
Manufacturer: Samtec Inc.

Product Information

Contact Finish - Mating:

Gold

Style:

Board to Cable/Wire

HTSUS:

8536.69.4040

RoHS Status:

ROHS3 Compliant

Operating Temperature:

-55°C ~ 85°C

Contact Finish Thickness - Post:

Number of Positions:

Contact Finish - Post:

Tin

edacadModel:

T1M-05-GF-S-RA-TR Models

Overall Contact Length:

title:

T1M-05-GF-S-RA-TR

Insulation Height:

0.181" (4.60mm)

Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is T1M-05-GF-S-RA-TR. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 85°c operating temperature range. The product carries possible position value of 5. It has possible tin contact post finishing. 0.181" (4.60mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 250vac, 353vdc voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 3.00µin (0.076µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 3.3a per contact. It has 0.039" (1.00mm) of pitch-mating value. The product is available in surface mount, right angle configuration. The product micro mate™ t1m, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to t1m-05, a base product number of the product. The product is designated with the ear99 code number.

1794071 Test Report(Reliability Documents)

430061 Test Report 02(Reliability Documents)

305477 Test Reports 02(Reliability Documents)

T1M Datasheet(Datasheets)

Discrete Wire Terminal Strip, 1.00 mm Pitch(Datasheets)

T1M Series Other Related Documents 03(Other Related Documents)

Discrete Wire Terminal Strip, 1.00 mm Pitch(Other Related Documents)
