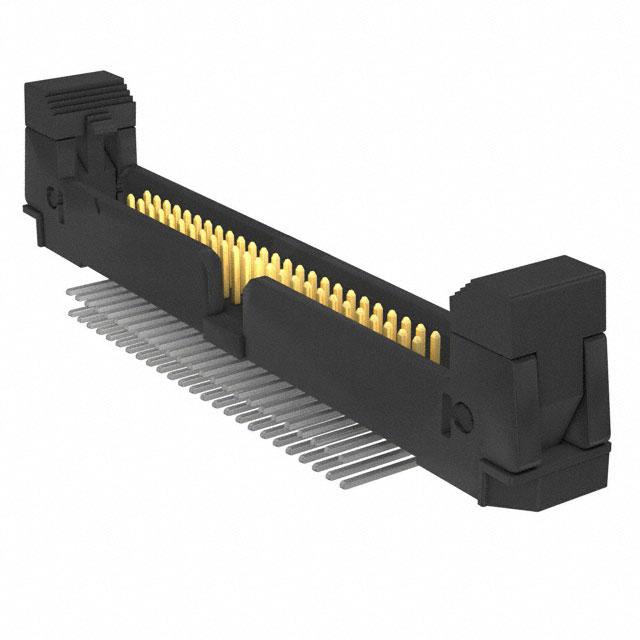

Samtec Inc. EHF-125-01-F-D-RA

EHF-125-01-F-D-RA Samtec Inc.
Samtec Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
50
Contact Finish - Post:
Tin
edacadModel:
EHF-125-01-F-D-RA Models
Overall Contact Length:
-
Insulation Height:
0.263" (6.67mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/2640898
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Header
Contact Length - Mating:
0.120" (3.05mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
3.00µin (0.076µm)
Fastening Type:
Latch Lock/Eject Hooks
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
1.75A
Contact Length - Post:
0.090" (2.29mm)
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole, Right Angle
Series:
EHF
Packaging:
Tube
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
EHF-125
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is EHF-125-01-F-D-RA. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 50. It has possible tin contact post finishing. 0.263" (6.67mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It has a typical square shape. It carries 0.050" (1.27mm) of row spacing. header Connector type offer robust functionality. It is 0.120" (3.05mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 3.00µin (0.076µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch lock/eject hooks is the Fastening Type of the product. The product features solder termination style. It has a long 6 weeks standard lead time. Additionally, the product's output is 1.75a. 0.090" (2.29mm) is the given possible contact length (post) values. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole, right angle configuration. The product ehf, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has a robust liquid crystal polymer (lcp), glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to ehf-125, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
EHF-125-01-F-D-SM-P-TR(Datasheets)
pdf icon
EHF Datasheet(Datasheets)
pdf icon
EHF Series Other Related Documents 01(Other Related Documents)
pdf icon
EHF-1xx-01-xx-D-xx-xx-xx Drawing(Product Drawings)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search EHF-125-01-F-D-RA on website for other similar products.
We accept all major payment methods for all products including ET13364663. Please check your shopping cart at the time of order.
You can order Samtec Inc. brand products with EHF-125-01-F-D-RA directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Samtec Inc. EHF-125-01-F-D-RA. You can also check on our website or by contacting our customer support team for further order details on Samtec Inc. EHF-125-01-F-D-RA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13364663 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Samtec Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET13364663.
Yes. We ship EHF-125-01-F-D-RA Internationally to many countries around the world.
