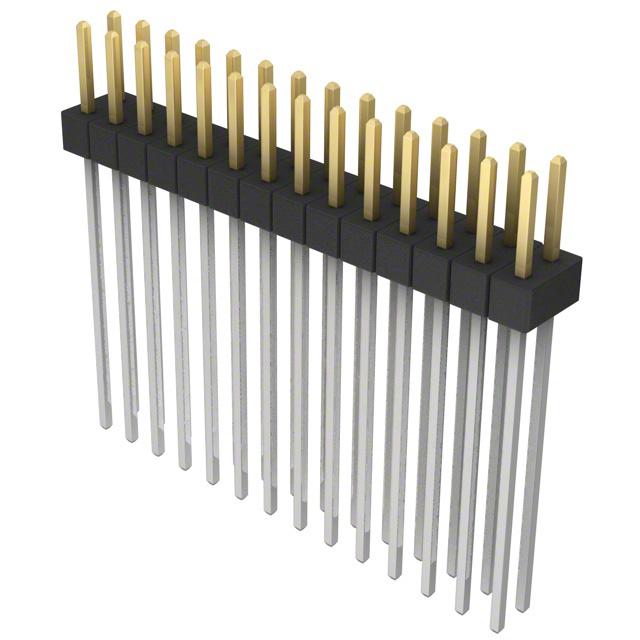

Sullins Connector Solutions PBC14DAHN

PBC14DAHN Sullins Connector Solutions
Sullins Connector Solutions

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 125°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
28
Overall Contact Length:
1.150" (29.21mm)
Insulation Height:
0.100" (2.54mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Unshrouded
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header, Breakaway
Contact Length - Mating:
0.230" (5.84mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
3A
Contact Length - Post:
0.820" (20.83mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
-
Packaging:
Bulk
Insulation Material:
Polybutylene Terephthalate (PBT)
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
PBC14
ECCN:
EAR99
Checking for live stock

This is manufactured by Sullins Connector Solutions. The manufacturer part number is PBC14DAHN. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 125°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 28. The product has a 1.150" (29.21mm) of overall contact lentgh. 0.100" (2.54mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features unshrouded. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. It carries 0.100" (2.54mm) of row spacing. header, breakaway Connector type offer robust functionality. It is 0.230" (5.84mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is not applicable. However, 10.0µin (0.25µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 3a. 0.820" (20.83mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. In addition, bulk is the available packaging type of the product. It has a robust polybutylene terephthalate (pbt) insulation material. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to pbc14, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
.100" Headers Datasheet(Datasheets)
pdf icon
xxCxxDxxN Drawing(Product Drawings)
pdf icon
Sullins Connector Solutions RoHS Cert(Environmental Information)
pdf icon
Sullins Connector Solutions REACH(Environmental Information)
