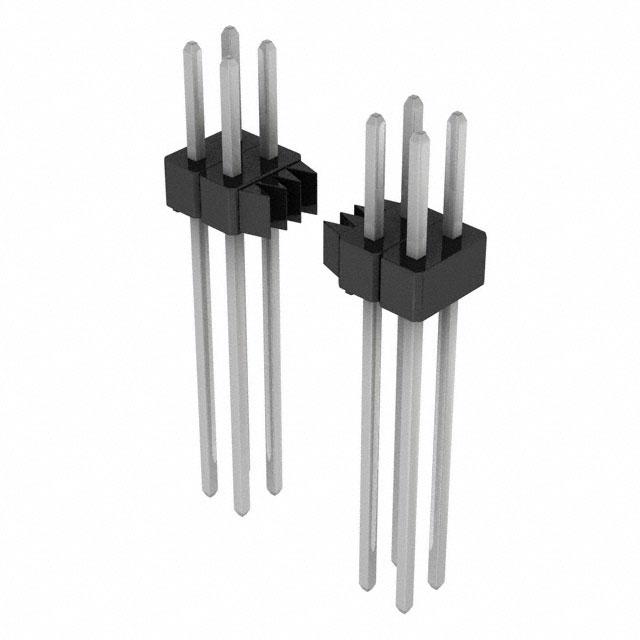

Sullins Connector Solutions GEC07DAGN

Enrgtech Part No: ET13199789
|
Manufacturer Part No:
GEC07DAGN
|
Manufacturer: Sullins Connector Solutions

Product Information

Contact Finish - Mating:

Tin

Style:

Board to Board or Cable

Contact Finish - Post:

Tin

HTSUS:

8536.69.4040

RoHS Status:

ROHS3 Compliant

Operating Temperature:

-65°C ~ 150°C

Contact Finish Thickness - Post:

100.0µin (2.54µm)

Number of Positions:

Overall Contact Length:

1.050" (26.67mm)

title:

GEC07DAGN

Insulation Height:

0.100" (2.54mm)

Insulation Color:

Black

Checking for live stock

This is manufactured by Sullins Connector Solutions. The manufacturer part number is GEC07DAGN. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 150°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 14. The product has a 1.050" (26.67mm) of overall contact lentgh. 0.100" (2.54mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features unshrouded. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. It carries 0.100" (2.54mm) of row spacing. header, breakaway Connector type offer robust functionality. It is 0.230" (5.84mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 4 weeks standard lead time. Additionally, the product's output is 3a. 0.720" (18.29mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa9t), nylon 9t insulation material. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to gec07d, a base product number of the product. The product is designated with the ear99 code number.

.100" Headers Datasheet(Datasheets)

xxCxxDxxN Drawing(Product Drawings)

Sullins Connector Solutions RoHS Cert(Environmental Information)

Sullins Connector Solutions REACH(Environmental Information)
