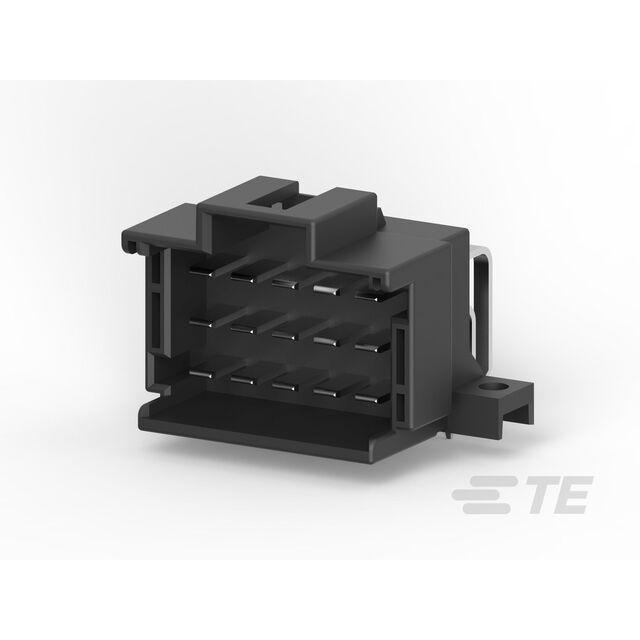

TE Connectivity AMP Connectors 966140-2

966140-2 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 100°C
Contact Finish Thickness - Post:
-
Number of Positions:
15
Contact Finish - Post:
-
edacadModel:
966140-2 Models
Overall Contact Length:
-
title:
966140-2
Insulation Height:
1.012" (25.70mm)
Insulation Color:
Black
REACH Status:
Vendor Undefined
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, General Purpose
Number of Rows:
3
Material Flammability Rating:
-
edacadModelUrl:
/en/models/2135855
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.217" (5.51mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.118" (3.00mm)
Pitch - Mating:
0.197" (5.00mm)
Ingress Protection:
-
Features:
Mounting Flange
Mounting Type:
Through Hole, Right Angle
Series:
MCP
Packaging:
Tray
Insulation Material:
Polyamide (PA66), Nylon 6/6, Glass Filled
Contact Type:
Tab
Contact Material:
Copper Alloy
Base Product Number:
966140
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 966140-2. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 100°c operating temperature range. The product carries possible position value of 15. 1.012" (25.70mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is vendor undefined. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive, general purpose. It comes in 3 of rows. It has a typical rectangular shape. It carries 0.217" (5.51mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 18 weeks standard lead time. 0.118" (3.00mm) is the given possible contact length (post) values. It has 0.197" (5.00mm) of pitch-mating value. The splendid features of the product include mounting flange. The product is available in through hole, right angle configuration. The product mcp, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6, glass filled insulation material. It has typical contact type of tab. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 966140, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
966140 Drawing Correction 06/Sep/2017(PCN Design/Specification)
pdf icon
966140 Tolerance 06/Sep/2016(PCN Design/Specification)
