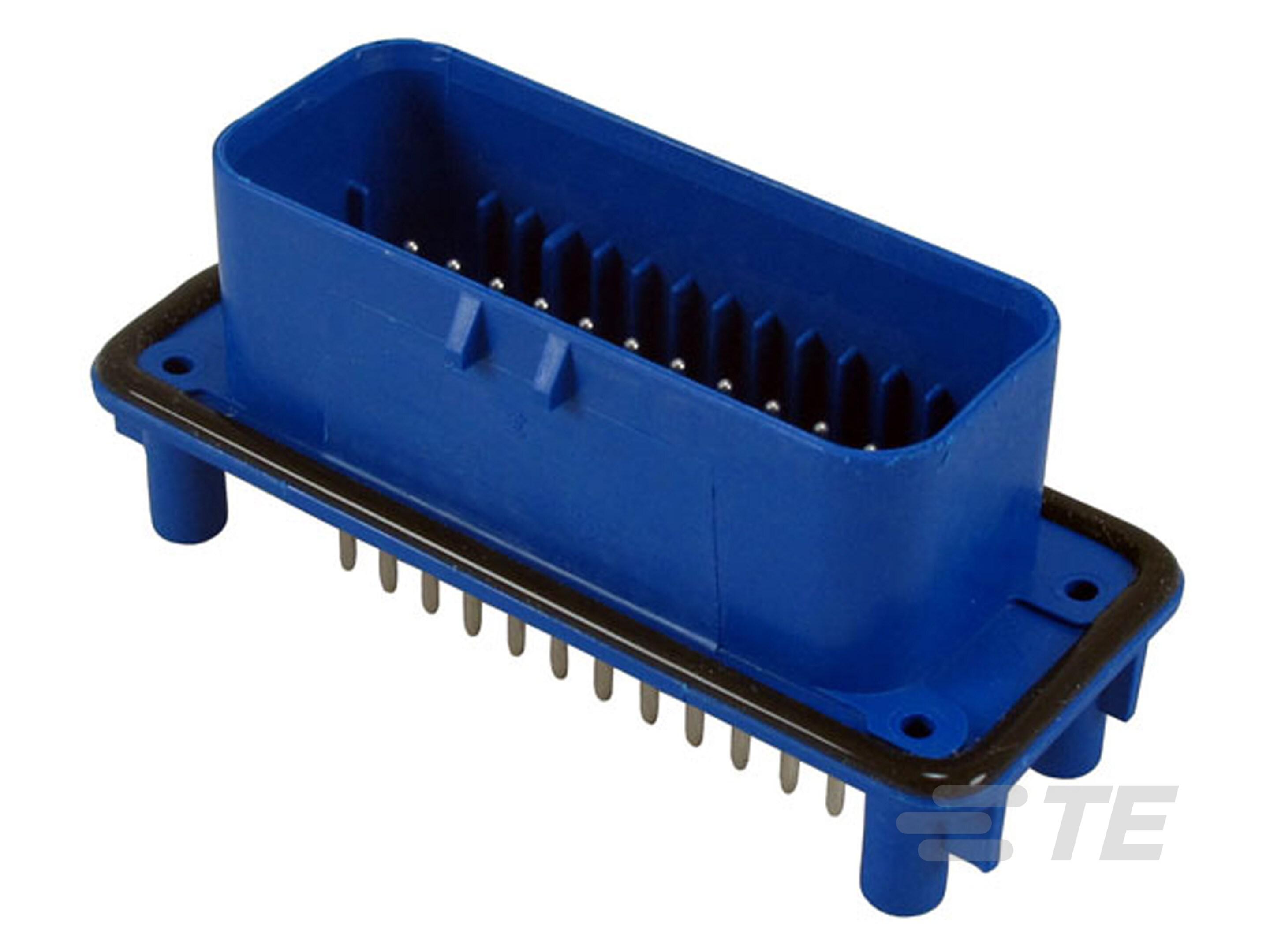

TE Connectivity AMP Connectors 776231-5

776231-5 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Number of Positions:
35
Contact Finish - Post:
-
edacadModel:
776231-5 Models
Overall Contact Length:
-
Insulation Height:
-
Insulation Color:
Blue
REACH Status:
REACH Affected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
3
Material Flammability Rating:
-
edacadModelUrl:
/en/models/2327376
Contact Shape:
Circular
Contact Finish Thickness - Mating:
-
Voltage Rating:
250VAC
Row Spacing - Mating:
0.157" (4.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
-
Pitch - Mating:
0.157" (4.00mm)
Ingress Protection:
-
Features:
Mounting Flange, Sealed
Mounting Type:
Panel Mount, Through Hole
Series:
AMPSEAL
Packaging:
Bulk
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Contact Material:
Brass
Base Product Number:
776231
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 776231-5. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 35. In addition, blue is the insulation color of the product. In addition, it is reach affected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 3 of rows. It has a typical circular shape. Moreover, the product has a nominal 250vac voltage rating. It carries 0.157" (4.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 15 weeks standard lead time. Additionally, the product's output is varies by wire gauge. It has 0.157" (4.00mm) of pitch-mating value. The splendid features of the product include mounting flange, sealed. The product is available in panel mount, through hole configuration. The product ampseal, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. The product is made from sturdy brass materials. Moreover, it corresponds to 776231, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Additional molding and plating capabilities 17/APR/2023(PCN Assembly/Origin)
pdf icon
y-776yyy-y design chg 13/JAN/2021(PCN Design/Specification)
pdf icon
Multiple Devices Mounting Screw 04/Mar/2016(PCN Design/Specification)
pdf icon
776231-5(Datasheets)
