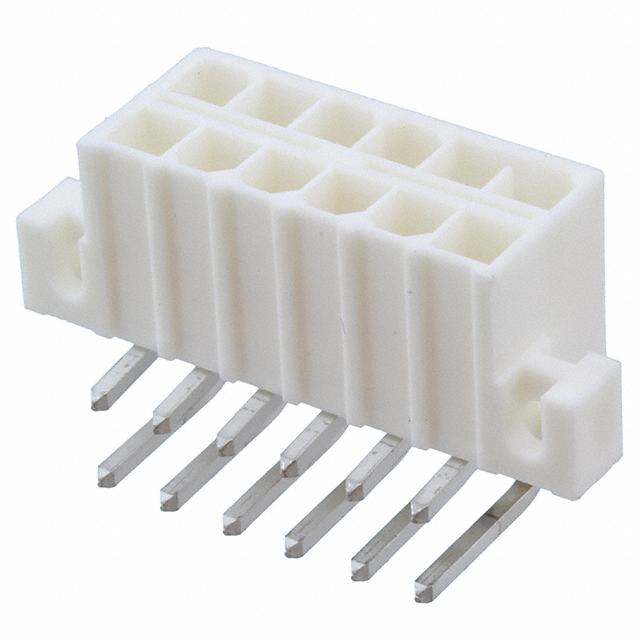

TE Connectivity AMP Connectors 5794176-7

5794176-7 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
12
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.461" (11.70mm)
Voltage Rating:
600VAC
REACH Status:
Vendor Undefined
edacadModel:
5794176-7 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2293665
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT)
Package:
Bulk
Row Spacing - Mating:
0.217" (5.51mm)
Connector Type:
Header
Contact Length - Mating:
0.205" (5.21mm)
Number of Positions Loaded:
10
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Locking Ramp
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
Mounting Flange
Mounting Type:
Through Hole, Right Angle
Series:
AMP-DUAC
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
5794176
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 5794176-7. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 105°c operating temperature range. The product carries possible position value of 12. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.461" (11.70mm) of insulation height. Moreover, the product has a nominal 600vac voltage rating. In addition, it is vendor undefined. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. It has a robust polybutylene terephthalate (pbt) insulation material. It is shipped in bulk package . It carries 0.217" (5.51mm) of row spacing. header Connector type offer robust functionality. It is 0.205" (5.21mm) contact mated. However, 10 is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.165" (4.20mm) of pitch-mating value. The splendid features of the product include mounting flange. The product is available in through hole, right angle configuration. The product amp-duac, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 5794176, a base product number of the product. The product is designated with the ear99 code number.
