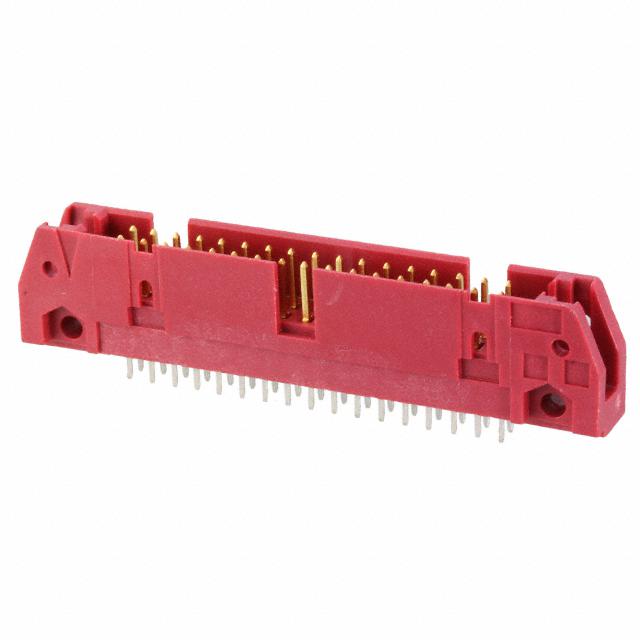

TE Connectivity AMP Connectors 5111008-8

5111008-8 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold or Gold-Palladium
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 105°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
34
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
0.639" (16.23mm)
Insulation Height:
0.549" (13.94mm)
Voltage Rating:
-
edacadModel:
5111008-8 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2285207
Insulation Color:
Red
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polycyclohexylenedimethylene Terephthalate (PCT)
Package:
Bulk
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
1A per Contact
Contact Length - Post:
0.110" (2.79mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot, Mounting Flange
Mounting Type:
Through Hole
Series:
AMP-Latch
Contact Type:
Male Pin
Contact Material:
-
Base Product Number:
5111008
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 5111008-8. It has nice contact finishing of gold or gold-palladium. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 105°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 34. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. The product has a 0.639" (16.23mm) of overall contact lentgh. 0.549" (13.94mm) of insulation height. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, red is the insulation color of the product. It has a typical square shape. It has a robust polycyclohexylenedimethylene terephthalate (pct) insulation material. It is shipped in bulk package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.240" (6.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 15 weeks standard lead time. Additionally, the product's output is 1a per contact. 0.110" (2.79mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot, mounting flange. The product is available in through hole configuration. The product amp-latch, is a highly preferred choice for users. It has typical contact type of male pin. Moreover, it corresponds to 5111008, a base product number of the product. The product is designated with the ear99 code number.
