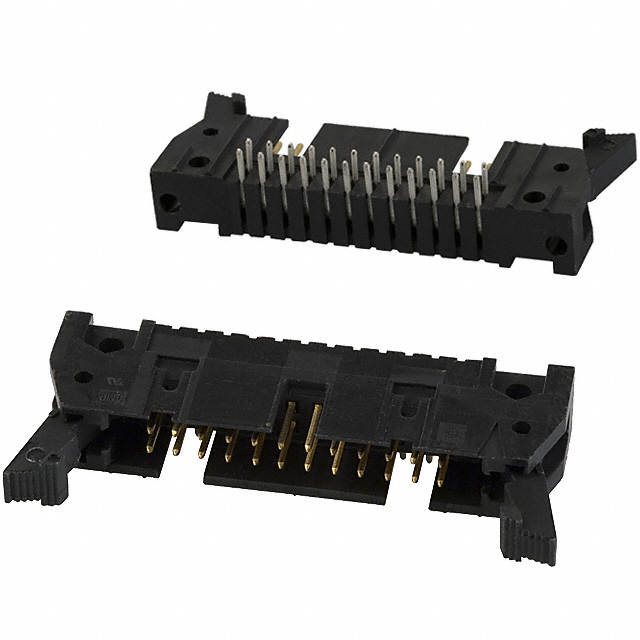

TE Connectivity AMP Connectors 499913-5

499913-5 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold or Gold-Palladium
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-65°C ~ 105°C
Number of Positions:
24
Contact Finish - Post:
Tin-Lead
edacadModel:
499913-5 Models
Overall Contact Length:
-
Insulation Height:
0.315" (8.00mm)
Insulation Color:
Black
REACH Status:
REACH Affected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/288461
Contact Shape:
Square
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Voltage Rating:
250VAC
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Latch Lock/Eject Hooks, Short
Termination:
Solder
Current Rating (Amps):
1A per Contact
Contact Length - Post:
0.110" (2.79mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot, Mounting Flange
Mounting Type:
Through Hole, Right Angle
Series:
AMP-Latch
Packaging:
Tray
Insulation Material:
-
Contact Material:
Brass
Base Product Number:
499913
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 499913-5. It has nice contact finishing of gold or gold-palladium. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -65°c ~ 105°c operating temperature range. The product carries possible position value of 24. It has possible tin-lead contact post finishing. 0.315" (8.00mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach affected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 250vac voltage rating. It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.240" (6.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, latch lock/eject hooks, short is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 1a per contact. 0.110" (2.79mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot, mounting flange. The product is available in through hole, right angle configuration. The product amp-latch, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. The product is made from sturdy brass materials. Moreover, it corresponds to 499913, a base product number of the product. The product is designated with the ear99 code number.
