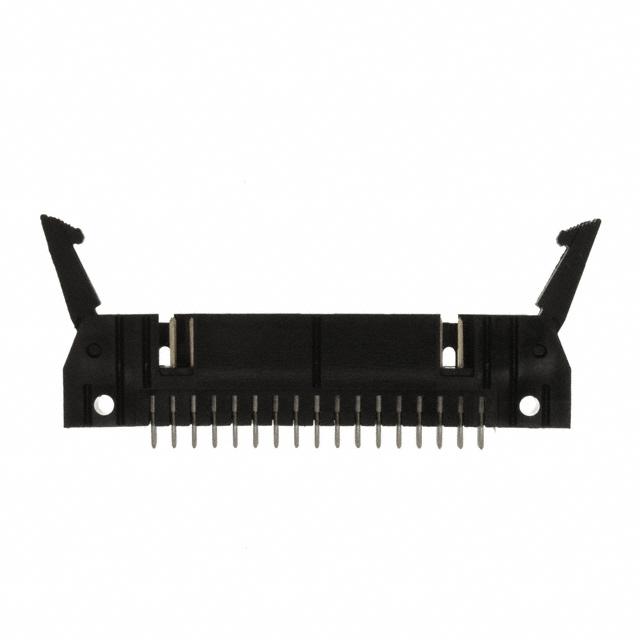

TE Connectivity AMP Connectors 499206-8

499206-8 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold or Gold-Palladium
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
Not applicable
Operating Temperature:
-65°C ~ 105°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
34
Contact Finish - Post:
Tin-Lead
edacadModel:
499206-8 Models
Overall Contact Length:
0.639" (16.23mm)
Insulation Height:
0.549" (13.94mm)
Insulation Color:
Black
REACH Status:
REACH Affected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/288520
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
250VAC
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Latch Lock/Eject Hooks, Long
Termination:
Solder
standardLeadTime:
12 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
0.110" (2.79mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot, Mounting Flange
Mounting Type:
Through Hole
Series:
AMP-Latch
Packaging:
Tray
Insulation Material:
-
Contact Type:
Male Pin
Contact Material:
-
Base Product Number:
499206
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 499206-8. It has nice contact finishing of gold or gold-palladium. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is not applicable. The product has -65°c ~ 105°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 34. It has possible tin-lead contact post finishing. The product has a 0.639" (16.23mm) of overall contact lentgh. 0.549" (13.94mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach affected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 250vac voltage rating. It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.240" (6.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch lock/eject hooks, long is the Fastening Type of the product. The product features solder termination style. It has a long 12 weeks standard lead time. Additionally, the product's output is 1a. 0.110" (2.79mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot, mounting flange. The product is available in through hole configuration. The product amp-latch, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has typical contact type of male pin. Moreover, it corresponds to 499206, a base product number of the product. The product is designated with the ear99 code number.
