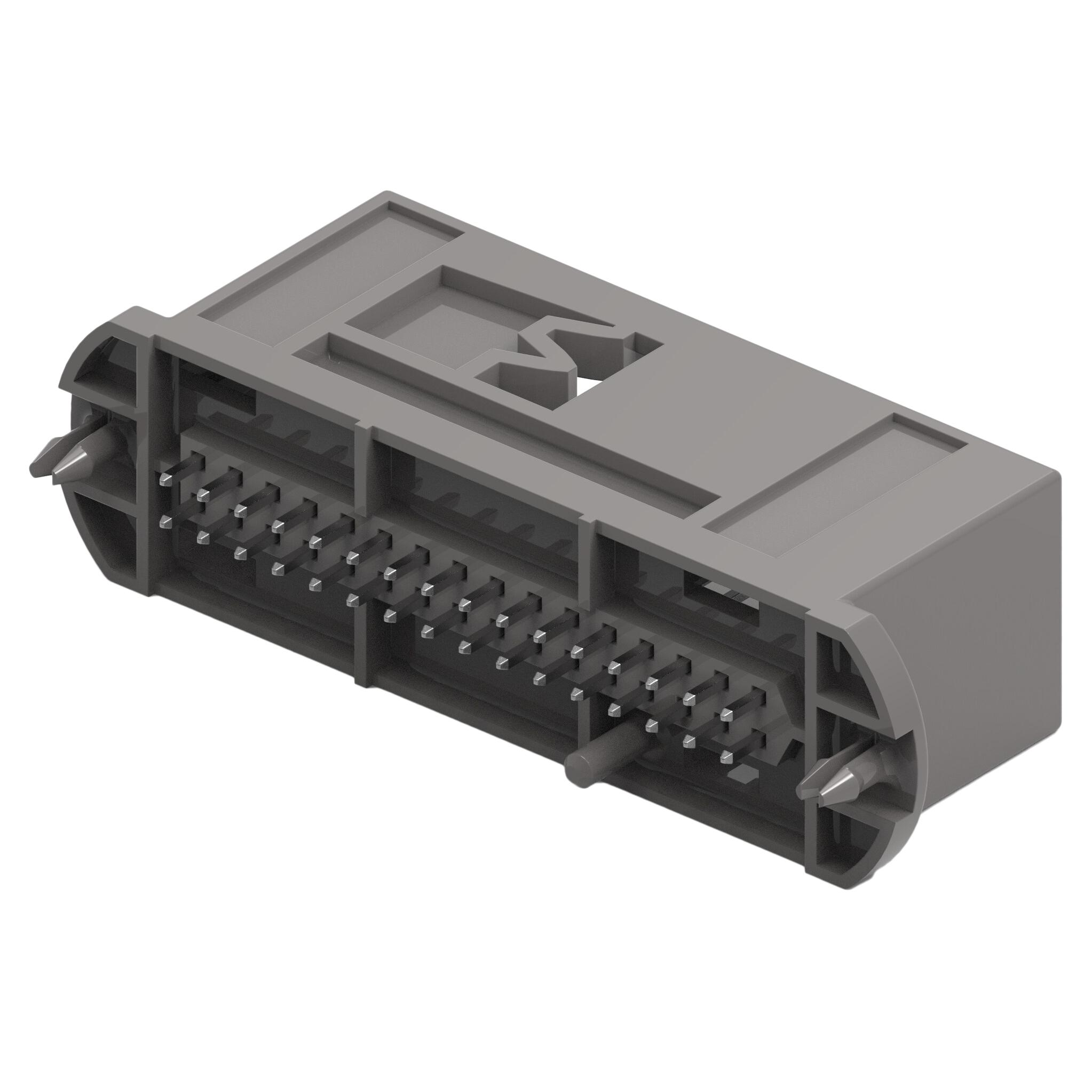

TE Connectivity AMP Connectors 2-966658-3

2-966658-3 TE Connectivity AMP Connectors
2-966658-3
2-966658-3
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 110°C
Contact Finish Thickness - Post:
-
Number of Positions:
32
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
0.520" (13.21mm)
Insulation Height:
0.795" (20.20mm)
Voltage Rating:
12V
REACH Status:
Vendor Undefined
edacadModel:
2-966658-3 Models
Applications:
Automotive
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/5009818
Insulation Color:
Gray
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyphthalamide (PPA), Glass Filled
Package:
Bulk
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.268" (6.80mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
78.7µin (2.00µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.098" (2.50mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole
Series:
AMPMODU Mod II
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
966658
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 2-966658-3. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 110°c operating temperature range. The product carries possible position value of 32. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. The product has a 0.520" (13.21mm) of overall contact lentgh. 0.795" (20.20mm) of insulation height. Moreover, the product has a nominal 12v voltage rating. In addition, it is vendor undefined. The product is widely employed in automotive. It comes in 2 of rows. In addition, gray is the insulation color of the product. It has a typical square shape. It has a robust polyphthalamide (ppa), glass filled insulation material. It is shipped in bulk package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.268" (6.80mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 78.7µin (2.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. 0.098" (2.50mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include board lock. The product is available in through hole configuration. The product ampmodu mod ii, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 966658, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
966658 Drawing Correction 07/Jan/2019(PCN Design/Specification)
pdf icon
966658 Document Clarification 02/Oct/2018(PCN Design/Specification)
