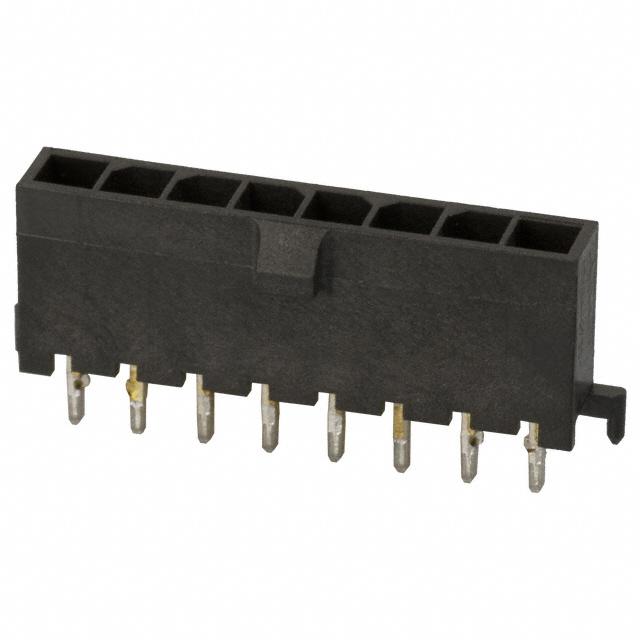

TE Connectivity AMP Connectors 1445093-8

1445093-8 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin-Lead
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
8
Overall Contact Length:
-
Insulation Height:
0.364" (9.25mm)
Insulation Color:
Black
REACH Status:
REACH Affected
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
250V
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Locking Ramp
Termination:
Press-Fit, Solder
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.125" (3.18mm)
Pitch - Mating:
0.118" (3.00mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Series:
Micro MATE-N-LOK
Packaging:
Tray
Insulation Material:
Polyamide (PA), Nylon
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
1445093
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1445093-8. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible tin-lead contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 8. 0.364" (9.25mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach affected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in general purpose. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 250v voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features press-fit, solder termination style. Additionally, the product's output is varies by wire gauge. 0.125" (3.18mm) is the given possible contact length (post) values. It has 0.118" (3.00mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole configuration. The product micro mate-n-lok, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 1445093, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
1445093 Drawing Correction 04/Jan/2017(PCN Design/Specification)
pdf icon
Multiple Drawings Document Clarification 23/Apr/2019(PCN Design/Specification)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 1445093-8 on website for other similar products.
We accept all major payment methods for all products including ET13088323. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 1445093-8 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 1445093-8. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 1445093-8.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13088323 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13088323.
Yes. We ship 1445093-8 Internationally to many countries around the world.
