Omron Electronics Inc-EMC Div XG8W-4044

XG8W-4044 Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div

Product Information

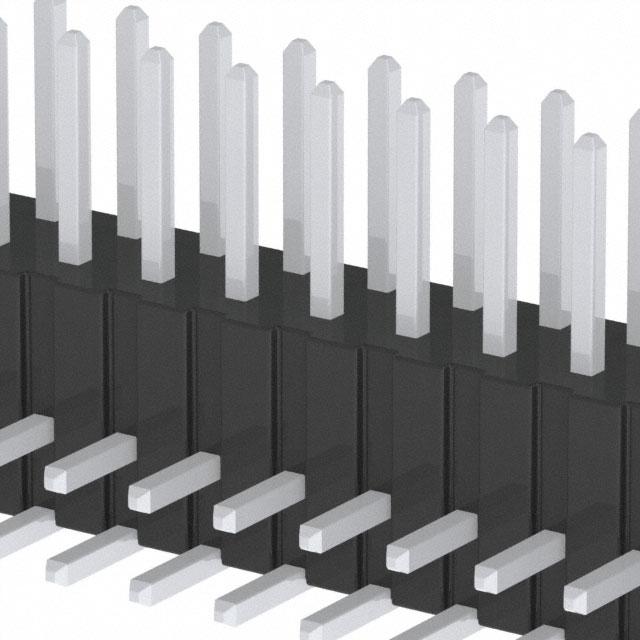

The XG8W-4044 from Omron Electronics Inc-EMC Div is a right-angle 40-position 2.54mm pitch header connector. It is designed for electrical connections in various applications.

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
78.7µin (2.00µm)
Number of Positions:
40
Contact Finish - Post:
Tin
edacadModel:
XG8W-4044 Models
Overall Contact Length:
-
title:
XG8W-4044
Insulation Height:
0.236" (6.00mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Unshrouded
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1829490
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
300V
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.236" (6.00mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
14 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.118" (3.00mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
XG8
Packaging:
Bulk
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Contact Type:
Male Pin
Contact Material:
Brass, Nickel
Base Product Number:
XG8W
ECCN:
EAR99
Checking for live stock

The Omron Electronics Inc. - EMC Division XG8W-4044 is a plug connector designed by Omron Electronics Inc. - EMC Division. It is a 40-position, double-row connector with a right-angle configuration. This connector is engineered explicitly for electronic applications where space-saving and compact design is essential. Its double-row, right-angle layout and high-quality construction make it a preferred choice for various industries, enabling efficient and robust signal transmission.

Key Attributes and Advantages of Omron Electronics Inc-EMC Div XG8W-4044 Include:

  • Compact Design: The XG8W-4044 plug connector offers a compact and space-saving solution, making it ideal for applications with limited space constraints.
  • Double-Row Configuration: With a double-row configuration, this connector provides a higher density of connections, allowing for efficient signal transmission and integration.
  • Right-Angle Orientation: The right-angle orientation of the XG8W-4044 plug connector enables easy PCB mounting, optimising space utilisation and ensuring convenient installation.
  • High Reliability: Omron Electronics Inc. - EMC Division ensures its products' highest quality and reliability. The XG8W-4044 connector is built to withstand demanding environmental conditions and maintain consistent performance.
  • Versatility: This plug connector suits various applications, including industrial automation, robotics, telecommunications, and consumer electronics.

The Omron Electronics Inc-EMC Div XG8W-4044: Application Versatility

The XG8W-4044 plug connector finds applications in various industries and electronic systems, including:

  • Industrial Automation: It can be utilised in control panels, PLCs (Programmable Logic Controllers), and industrial machinery.
  • Robotics: The XG8W-4044 connector is well-suited for robot controllers and robotic systems, facilitating reliable communication between components.
  • Telecommunications: It can be utilised in network equipment, servers, and communication systems, ensuring seamless connectivity and signal transmission.
  • Consumer Electronics: The XG8W-4044 plug connector suits gaming consoles, audio/video equipment, and other electronic devices.

pdf icon
XG8 Series(Datasheets)
pdf icon
XGx and XJ8 Guide(Datasheets)
pdf icon
How to Read Date Codes(Other Related Documents)
