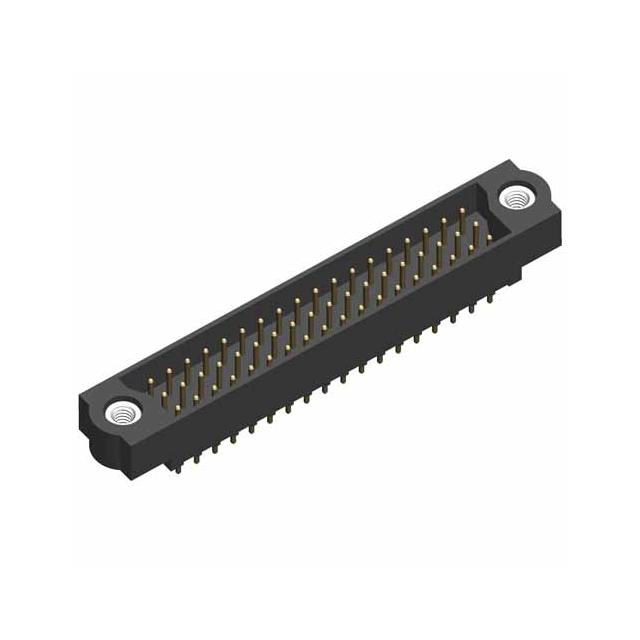

Harwin Inc. M83-LMT1M1N18-0000-000

M83-LMT1M1N18-0000-000 Harwin Inc.
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
18
Overall Contact Length:
-
title:
M83-LMT1M1N18-0000-000
Insulation Height:
0.238" (6.05mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
3
Material Flammability Rating:
UL94 V-0
Contact Shape:
Circular
Mated Stacking Heights:
10.65mm, 12.85mm
Voltage Rating:
120V
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
29.5µin (0.75µm)
Fastening Type:
Threaded
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
2.2A per Contact
Contact Length - Post:
0.130" (3.30mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Mating Flange
Mounting Type:
Through Hole
Series:
Datamate J-Tek
Packaging:
Bag
Insulation Material:
Polyphenylene Sulfide (PPS), Glass Filled
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
M83-LMT1M
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is M83-LMT1M1N18-0000-000. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 18. 0.238" (6.05mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 3 of rows. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. The mated stacking heights of a bespoke product includes 10.65mm, 12.85mm. Moreover, the product has a nominal 120v voltage rating. It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 29.5µin (0.75µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, threaded is the Fastening Type of the product. The product features solder termination style. It has a long 15 weeks standard lead time. Additionally, the product's output is 2.2a per contact. 0.130" (3.30mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include mating flange. The product is available in through hole configuration. The product datamate j-tek, is a highly preferred choice for users. In addition, bag is the available packaging type of the product. It has a robust polyphenylene sulfide (pps), glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to m83-lmt1m, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
M83-LMT1M1N18-0000-000(Product Brief)
pdf icon
Harwin REACH(Environmental Information)
pdf icon
M83-LMT1M1Nxx-0000-000 Drawing(Datasheets)
pdf icon
M80, M83 Series Spec Sheet(Datasheets)
pdf icon
M83-LML3M1Nxx-0000-000 Drawing(Datasheets)
pdf icon
M80-001(Other Related Documents)
pdf icon
M80-0110001(Other Related Documents)
