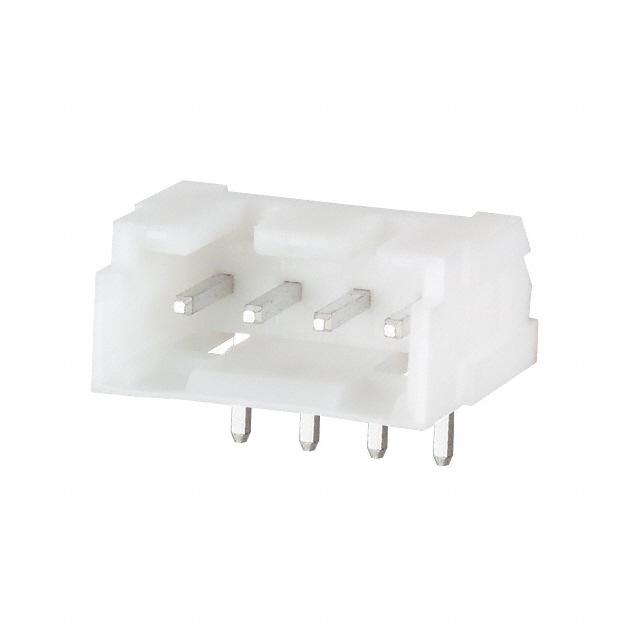

Hirose Electric Co Ltd DF1BZ-4P-2.5DS(24)

DF1BZ-4P-2-5DS-24- Hirose Electric Co Ltd DF1BZ-4P-2.5DS(24)
Hirose Electric Co Ltd

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-35°C ~ 85°C
Number of Positions:
4
Overall Contact Length:
-
Insulation Height:
0.224" (5.69mm)
Insulation Color:
White
Shrouding:
Shrouded - 4 Wall
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Contact Finish Thickness - Mating:
39.4µin (1.00µm)
Voltage Rating:
150V
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.177" (4.50mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
0.142" (3.60mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole, Right Angle
Series:
DF1B
Packaging:
Bulk
Insulation Material:
Polyamide (PA), Nylon
ECCN:
EAR99
Base Product Number:
DF1BZ
Contact Material:
Brass
Checking for live stock

This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is DF1BZ-4P-2.5DS(24). It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -35°c ~ 85°c operating temperature range. The product carries possible position value of 4. 0.224" (5.69mm) of insulation height. In addition, white is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 39.4µin (1.00µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 150v voltage rating. header Connector type offer robust functionality. It is 0.177" (4.50mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. 0.142" (3.60mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole, right angle configuration. The product df1b, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. The product is designated with the ear99 code number. Moreover, it corresponds to df1bz, a base product number of the product. The product is made from sturdy brass materials.
