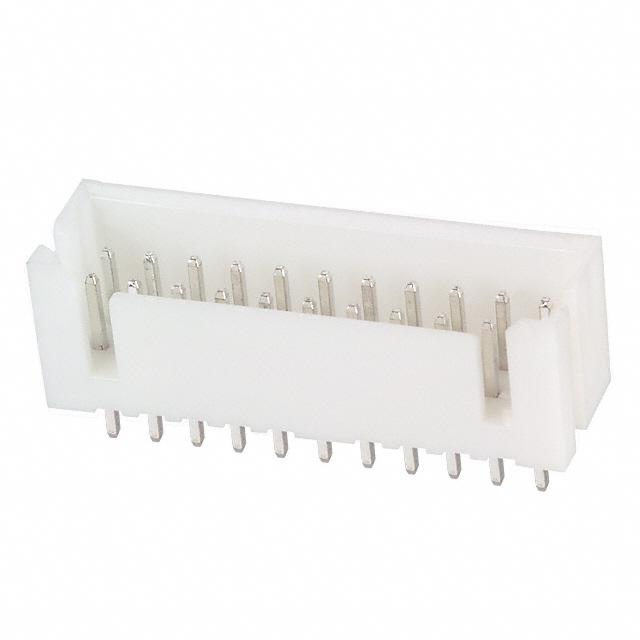

Hirose Electric Co Ltd DF1BZ-22DP-2.5DSA

DF1BZ-22DP-2-5DSA Hirose Electric Co Ltd DF1BZ-22DP-2.5DSA
Hirose Electric Co Ltd

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-35°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
22
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
0.417" (10.60mm)
Insulation Height:
0.374" (9.50mm)
Voltage Rating:
250V
edacadModel:
DF1BZ-22DP-2.5DSA Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1033181
Insulation Color:
White
Contact Shape:
Square
Mated Stacking Heights:
14mm
Insulation Material:
Polyamide (PA), Nylon
Package:
Tray
Row Spacing - Mating:
0.098" (2.50mm)
Connector Type:
Header
Contact Length - Mating:
0.177" (4.50mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
0.142" (3.60mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
DF1B
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
DF1B
ECCN:
EAR99
Checking for live stock

This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is DF1BZ-22DP-2.5DSA. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -35°c ~ 85°c operating temperature range. The product carries possible position value of 22. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. The product has a 0.417" (10.60mm) of overall contact lentgh. 0.374" (9.50mm) of insulation height. Moreover, the product has a nominal 250v voltage rating. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, white is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 14mm. It has a robust polyamide (pa), nylon insulation material. It is shipped in tray package . It carries 0.098" (2.50mm) of row spacing. header Connector type offer robust functionality. It is 0.177" (4.50mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. 0.142" (3.60mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole configuration. The product df1b, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to df1b, a base product number of the product. The product is designated with the ear99 code number.
