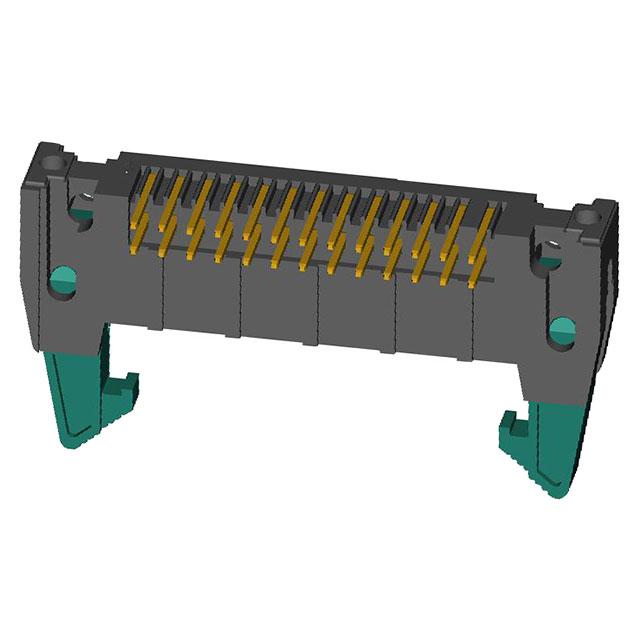

CNC Tech 3010-26-002-13-99

3010-26-002-13-99 CNC Tech
3010-26-002-13-99
CNC Tech

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
26
Overall Contact Length:
-
Insulation Height:
0.327" (8.30mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
-
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT)
Package:
Tray
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
80.0µin (2.03µm)
Fastening Type:
Latch Lock/Eject Hooks, Long
Termination:
Solder
Current Rating (Amps):
1A
Contact Length - Post:
0.134" (3.40mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole, Right Angle
Series:
-
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
3010-26
ECCN:
EAR99
Checking for live stock

This is manufactured by CNC Tech. The manufacturer part number is 3010-26-002-13-99. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 26. 0.327" (8.30mm) of insulation height. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. It has a robust polybutylene terephthalate (pbt) insulation material. It is shipped in tray package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 80.0µin (2.03µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch lock/eject hooks, long is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 1a. 0.134" (3.40mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole, right angle configuration. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 3010-26, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
CNC Tech RoHS_REACH _CA Prop_Halogen(Environmental Information)
pdf icon
IDC Header Ordering Guide(Part Numbering Guide)
pdf icon
3010-xx-002-13-99 Drawing(Datasheets)
pdf icon
IDC Header Mating Guide(Datasheets)
pdf icon
IDC, Flat Ribbon Cable Mating Chart(Datasheets)
pdf icon
3x10 Soldering Recommendations(Other Related Documents)
