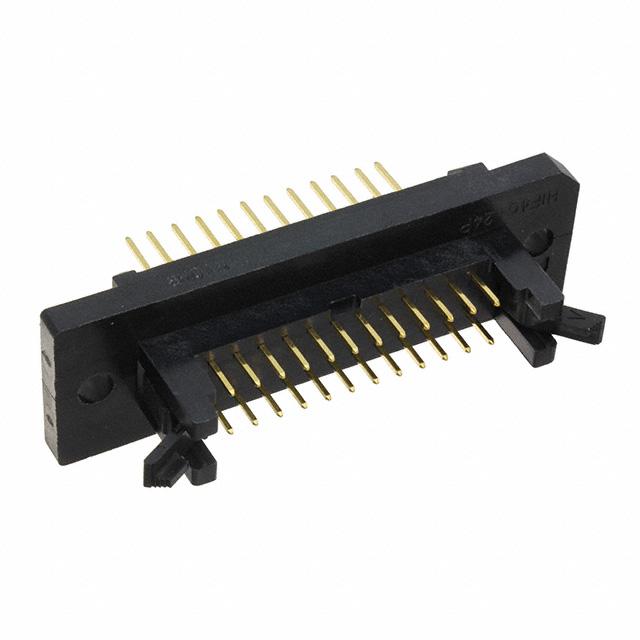

Hirose Electric Co Ltd HIF4C-24P-3.18W

HIF4C-24P-3-18W Hirose Electric Co Ltd HIF4C-24P-3.18W
Hirose Electric Co Ltd

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
-
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
24
Overall Contact Length:
-
Insulation Height:
-
Voltage Rating:
300V
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT)
Package:
Bulk
Row Spacing - Mating:
0.250" (6.35mm)
Connector Type:
Header
Contact Length - Mating:
0.220" (5.59mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Latch Lock/Eject Hooks
Termination:
Wire Wrap
Current Rating (Amps):
3A
Contact Length - Post:
-
Pitch - Mating:
0.125" (3.18mm)
Ingress Protection:
-
Features:
Keying Slot, Mounting Flange
Mounting Type:
Panel Mount, Through Hole, Right Angle
Series:
HIF4
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
HIF4
ECCN:
EAR99
Checking for live stock

This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is HIF4C-24P-3.18W. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 85°c operating temperature range. The product carries possible position value of 24. Moreover, the product has a nominal 300v voltage rating. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polybutylene terephthalate (pbt) insulation material. It is shipped in bulk package . It carries 0.250" (6.35mm) of row spacing. header Connector type offer robust functionality. It is 0.220" (5.59mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch lock/eject hooks is the Fastening Type of the product. The product features wire wrap termination style. Additionally, the product's output is 3a. It has 0.125" (3.18mm) of pitch-mating value. The splendid features of the product include keying slot, mounting flange. The product is available in panel mount, through hole, right angle configuration. The product hif4, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to hif4, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult devs Material manufacturer chg 23/AUG/2018(PCN Obsolescence/ EOL)
pdf icon
Mult Devs EOL/Obs 30/Oct/2023(PCN Obsolescence/ EOL)
pdf icon
End of Life 10/JAN/2024(PCN Obsolescence/ EOL)
pdf icon
HIF4 Series(Datasheets)
