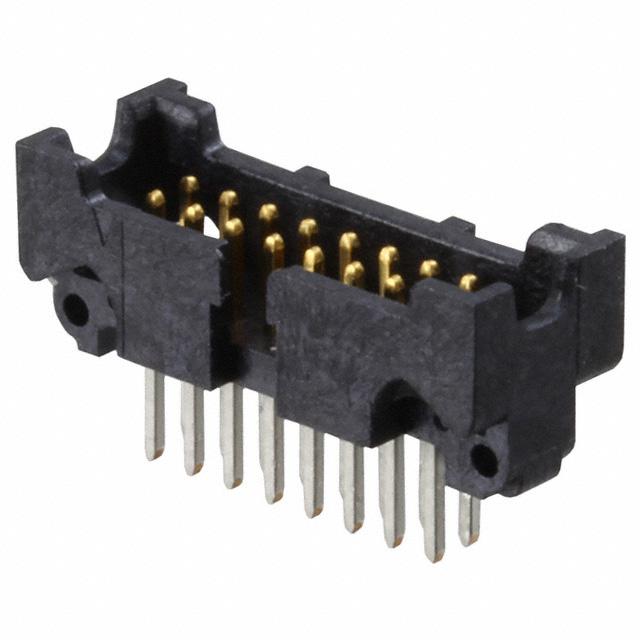

3M 45216-600230

45216-600230 3M
45216-600230
45216-600230
3M

Product Information

Shrouded/Unshrouded:
Shrouded
Current Rating:
1.0A
Mounting Type:
Through Hole
Series:
452
Body Orientation:
Straight
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
2
Contact Plating:
Gold
Pitch:
1.27mm
Number of Contacts:
16
Contact Material:
Copper Alloy
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 125°C
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Number of Positions:
16
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.222" (5.65mm)
Voltage Rating:
125V
REACH Status:
REACH Unaffected
edacadModel:
45216-600230 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4475167
Insulation Color:
-
Contact Shape:
Square
Mated Stacking Heights:
5.84mm, 6.60mm, 7.21mm, 8.13mm
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Tray
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
0.094" (2.40mm)
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
452
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
45216
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 45216-600230. It is supplied as shrouded. The product has a current rating of 1.0a. The product is available in through hole configuration. The product 452, is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. It allows wire to board connector system. It comes in 2 of rows. The high-quality gold is used as contact plating material. Moreover, the product is 1.27mm. The product contains 16 contacts. The product is made from sturdy copper alloy materials. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 125°c operating temperature range. Additionally, it features 200.0µin (5.08µm) of post thickness. The product carries possible position value of 16. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.222" (5.65mm) of insulation height. Moreover, the product has a nominal 125v voltage rating. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The mated stacking heights of a bespoke product includes 5.84mm, 6.60mm, 7.21mm, 8.13mm. It has a robust liquid crystal polymer (lcp) insulation material. It is shipped in tray package . It carries 0.050" (1.27mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 13 weeks standard lead time. Additionally, the product's output is 1a. 0.094" (2.40mm) is the given possible contact length (post) values. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include keying slot. It has typical contact type of male pin. Moreover, it corresponds to 45216, a base product number of the product. The product is designated with the ear99 code number.
