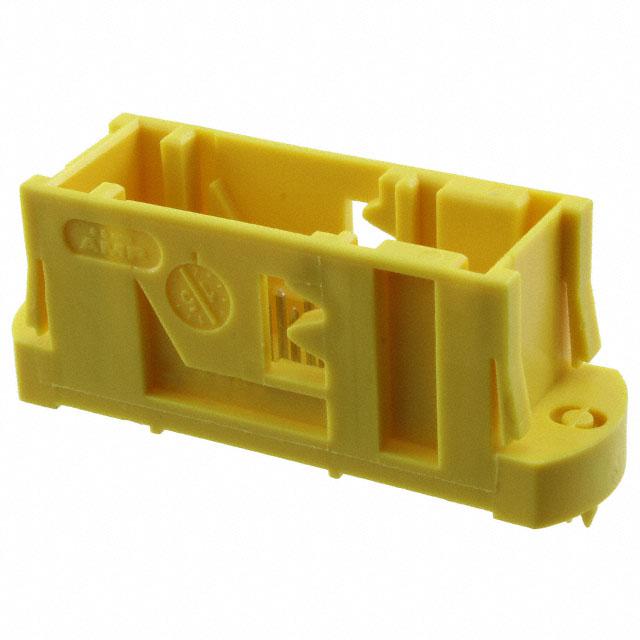

TE Connectivity AMP Connectors 953236-1

953236-1 TE Connectivity AMP Connectors
953236-1
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-40°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
26
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.823" (20.90mm)
Voltage Rating:
-
REACH Status:
Vendor Undefined
edacadModel:
953236-1 Models
Applications:
Automotive
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/2328879
Insulation Color:
Yellow
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Package:
Bulk
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.264" (6.70mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Lock
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
0.128" (3.25mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Board Guide, Board Lock
Mounting Type:
Through Hole
Series:
Micro Quadlok
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
953236
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 953236-1. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -40°c ~ 85°c operating temperature range. The product carries possible position value of 26. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.823" (20.90mm) of insulation height. In addition, it is vendor undefined. The product is widely employed in automotive. It comes in 2 of rows. In addition, yellow is the insulation color of the product. It has a typical square shape. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. It is shipped in bulk package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.264" (6.70mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch lock is the Fastening Type of the product. The product features solder termination style. 0.128" (3.25mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include board guide, board lock. The product is available in through hole configuration. The product micro quadlok, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 953236, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
953236-1 Tool Replacement 13/Sep/2017(PCN Assembly/Origin)
pdf icon
Mult Devs - End of Life 09/FEB/2021(PCN Obsolescence/ EOL)
