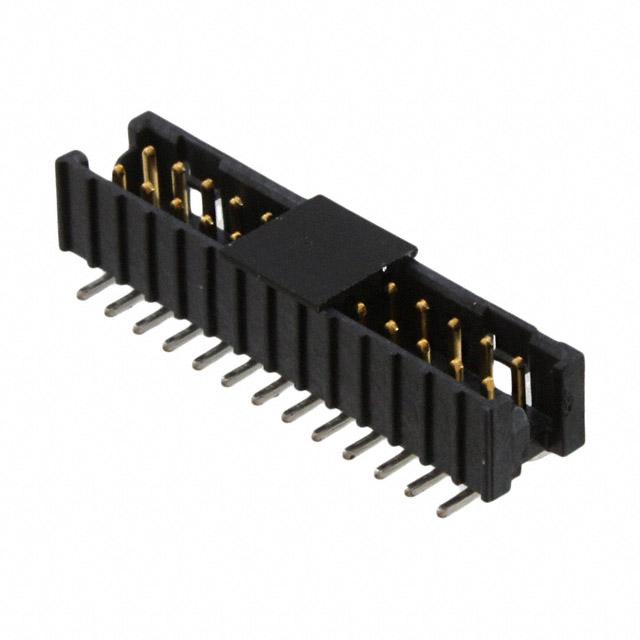

3M 159126-2002

159126-2002 3M
159126-2002
3M

Product Information

Shrouded/Unshrouded:
Shrouded
Current Rating:
1.25A
Mounting Type:
Surface Mount
Series:
159
Body Orientation:
Straight
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
2
Contact Plating:
Gold
Pitch:
2.0mm
Number of Contacts:
26
Contact Material:
Copper Alloy
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Number of Positions:
26
Contact Finish - Post:
Tin
edacadModel:
159126-2002 Models
Overall Contact Length:
-
title:
159126-2002
Insulation Height:
0.210" (5.33mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2503846
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
150V
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
0.142" (3.61mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Detent Lock
Termination:
Solder
Current Rating (Amps):
1.25A
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Surface Mount
Series:
159
Packaging:
Tape & Reel (TR)
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
159126
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 159126-2002. It is supplied as shrouded. The product has a current rating of 1.25a. The product is available in surface mount configuration. The product 159, is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. It allows wire to board connector system. It comes in 2 of rows. The high-quality gold is used as contact plating material. Moreover, the product is 2.0mm. The product contains 26 contacts. The product is made from sturdy copper alloy materials. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 105°c operating temperature range. Additionally, it features 200.0µin (5.08µm) of post thickness. The product carries possible position value of 26. It has possible tin contact post finishing. 0.210" (5.33mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 150v voltage rating. It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. It is 0.142" (3.61mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 1.25a. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include keying slot. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust liquid crystal polymer (lcp), glass filled insulation material. It has typical contact type of male pin. Moreover, it corresponds to 159126, a base product number of the product. The product is designated with the ear99 code number.
