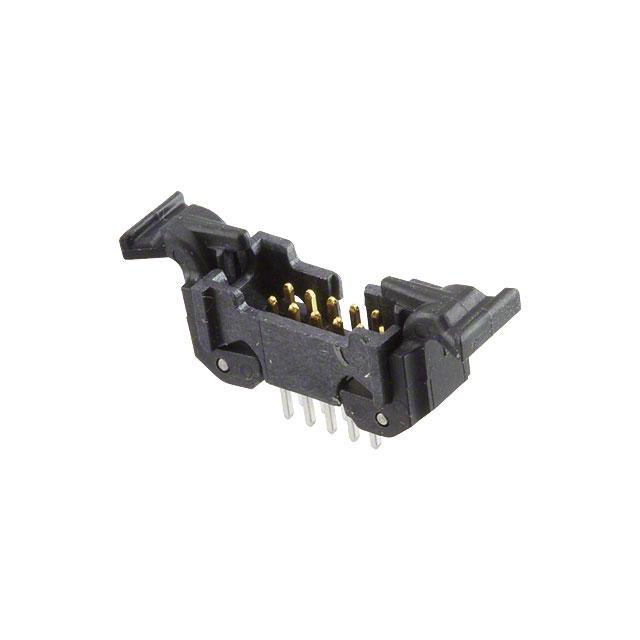

3M 45210-620230

45210-620230 3M
45210-620230
45210-620230
3M

Product Information

Current Rating:
1A
Mounting Type:
Through Hole
Voltage Rating:
125 V
Series:
452
Body Orientation:
Straight
Termination Method:
Solder
Shrouded:
Shrouded
Number of Rows:
2
Pitch:
1.27mm
Number of Contacts:
10
Type:
Shrouded Header
Contact Material:
Copper Alloy
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 125°C
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Number of Positions:
10
Contact Finish - Post:
Tin
edacadModel:
45210-620230 Models
Overall Contact Length:
-
Insulation Height:
0.222" (5.65mm)
Insulation Color:
-
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4475173
Contact Shape:
Square
Mated Stacking Heights:
5.84mm, 6.60mm, 7.21mm, 8.13mm
Voltage Rating:
125V
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Latch Lock/Eject Hooks, Short
Termination:
Solder
standardLeadTime:
12 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
0.094" (2.40mm)
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
452
Packaging:
Tray
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
45210
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 45210-620230. The product has a current rating of 1a. The product is available in through hole configuration. Moreover, the product has a nominal 125 v voltage rating. The product 452, is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. It is shrouded . It comes in 2 of rows. Moreover, the product is 1.27mm. The product contains 10 contacts. It comes in shrouded header configuration. The product is made from sturdy copper alloy materials. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 125°c operating temperature range. Additionally, it features 200.0µin (5.08µm) of post thickness. The product carries possible position value of 10. It has possible tin contact post finishing. 0.222" (5.65mm) of insulation height. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The mated stacking heights of a bespoke product includes 5.84mm, 6.60mm, 7.21mm, 8.13mm. Moreover, the product has a nominal 125v voltage rating. It carries 0.050" (1.27mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch lock/eject hooks, short is the Fastening Type of the product. The product features solder termination style. It has a long 12 weeks standard lead time. Additionally, the product's output is 1a. 0.094" (2.40mm) is the given possible contact length (post) values. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include keying slot. In addition, tray is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. It has typical contact type of male pin. Moreover, it corresponds to 45210, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
451, 452 Series Product Spec(Datasheets)
pdf icon
451, 452 Socket/Header Series(Datasheets)
pdf icon
452 BrdMnt Header Series Drawing(Product Drawings)
pdf icon
452 Series Conn. System Mated Dims Drawing(Product Drawings)
pdf icon
45yyy-yy0yy0 - SKU number chg 27/APR/2021(PCN Part Number)
