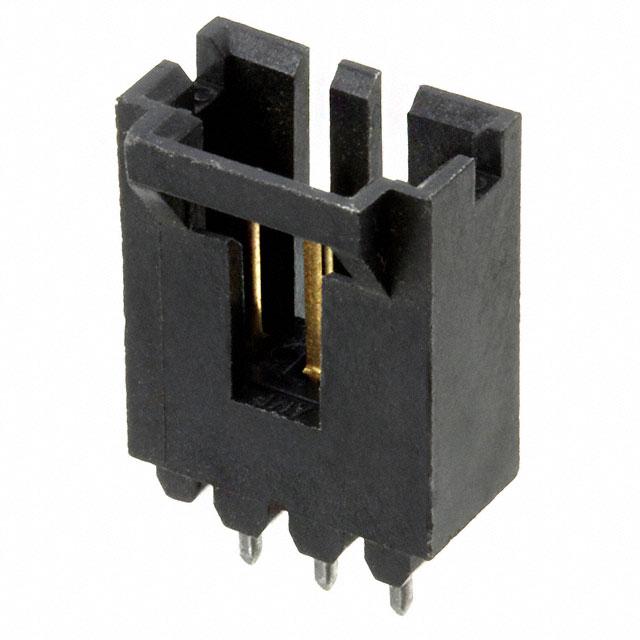

TE Connectivity AMP Connectors 104363-2

104363-2 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
Not applicable
Operating Temperature:
-65°C ~ 105°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
3
Contact Finish - Post:
Tin-Lead
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
0.550" (13.97mm)
Insulation Height:
0.535" (13.60mm)
Voltage Rating:
-
REACH Status:
REACH Affected
edacadModel:
104363-2 Models
Applications:
Automotive, General Purpose, Medical, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/668889
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Thermoplastic
Package:
Tube
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.230" (5.84mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
12 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.130" (3.30mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
AMPMODU MTE
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
104363
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 104363-2. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is not applicable. The product has -65°c ~ 105°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 3. It has possible tin-lead contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. The product has a 0.550" (13.97mm) of overall contact lentgh. 0.535" (13.60mm) of insulation height. In addition, it is reach affected. The product is widely employed in automotive, general purpose, medical, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust thermoplastic insulation material. It is shipped in tube package . header Connector type offer robust functionality. It is 0.230" (5.84mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 12 weeks standard lead time. Additionally, the product's output is 3a. 0.130" (3.30mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole configuration. The product ampmodu mte, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 104363, a base product number of the product. The product is designated with the ear99 code number.
