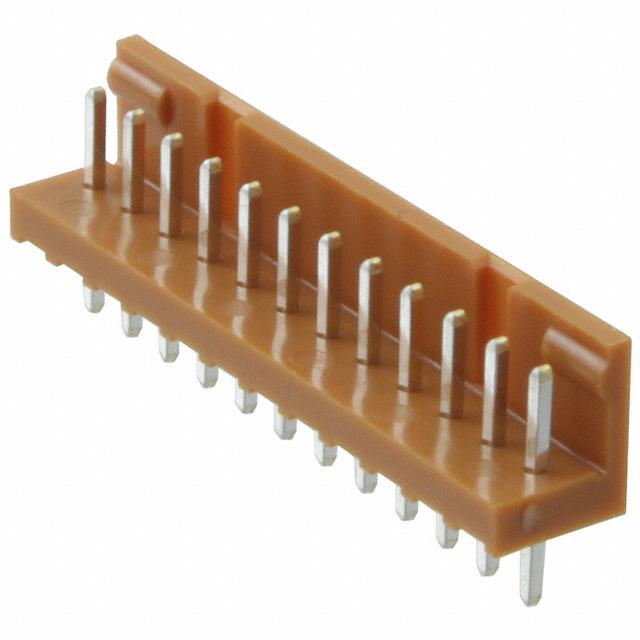

JAE Electronics IL-G-12P-S3T2-SA

IL-G-12P-S3T2-SA JAE Electronics
JAE Electronics

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
12
Overall Contact Length:
0.378" (9.60mm)
Insulation Height:
0.280" (7.10mm)
Insulation Color:
Brown
Shrouding:
Shrouded - 1 Wall
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Mated Stacking Heights:
10mm
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.157" (4.00mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Friction Lock
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
3A per Contact
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
IL-G
Packaging:
Bulk
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
IL-G-12P
ECCN:
EAR99
Checking for live stock

This is manufactured by JAE Electronics. The manufacturer part number is IL-G-12P-S3T2-SA. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. The product carries possible position value of 12. The product has a 0.378" (9.60mm) of overall contact lentgh. 0.280" (7.10mm) of insulation height. In addition, brown is the insulation color of the product. Furthermore, a bespoke product features shrouded - 1 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The mated stacking heights of a bespoke product includes 10mm. header Connector type offer robust functionality. It is 0.157" (4.00mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, friction lock is the Fastening Type of the product. The product features solder termination style. It has a long 15 weeks standard lead time. Additionally, the product's output is 3a per contact. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The product is available in through hole configuration. The product il-g, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6 insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to il-g-12p, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
IL-STD,G,Y,Z Series 01/Nov/2013(PCN Obsolescence/ EOL)
pdf icon
IL/IL-G Series PCN Reversal 20/Nov/2015(PCN Obsolescence/ EOL)
pdf icon
Production site chg 23/SEP/2019(PCN Assembly/Origin)
