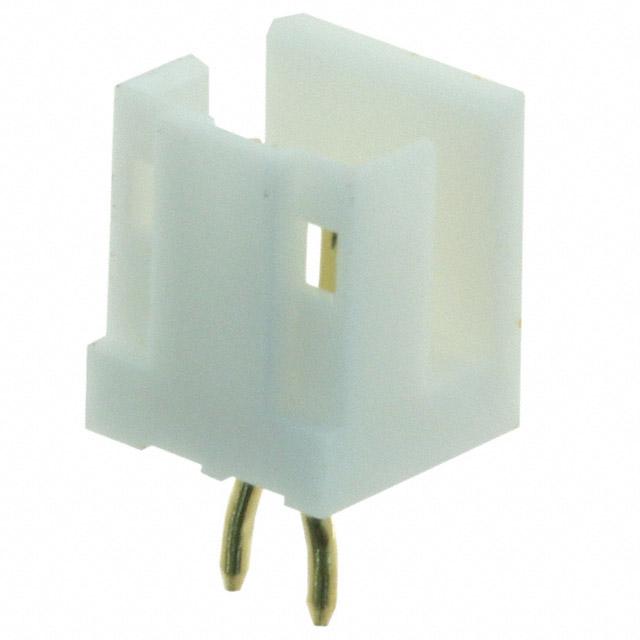

TE Connectivity AMP Connectors 292134-2

292134-2 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
2
Contact Finish - Post:
-
edacadModel:
292134-2 Models
Overall Contact Length:
0.358" (9.09mm)
Insulation Height:
0.268" (6.80mm)
Insulation Color:
Natural
REACH Status:
Vendor Undefined
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1864848
Contact Shape:
Circular
Mated Stacking Heights:
-
Voltage Rating:
125VAC
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.165" (4.20mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Detent Lock
Termination:
Kinked Pin, Solder
standardLeadTime:
11 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.126" (3.20mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
CT
Packaging:
Bulk
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
292134
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 292134-2. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product carries possible position value of 2. The product has a 0.358" (9.09mm) of overall contact lentgh. 0.268" (6.80mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is vendor undefined. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in general purpose. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. Moreover, the product has a nominal 125vac voltage rating. header Connector type offer robust functionality. It is 0.165" (4.20mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, detent lock is the Fastening Type of the product. The product features kinked pin, solder termination style. It has a long 11 weeks standard lead time. Additionally, the product's output is varies by wire gauge. 0.126" (3.20mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The product is available in through hole configuration. The product ct, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6 insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 292134, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
y-29213y-y, y-292250-y Drawing 11/May/2014(PCN Design/Specification)
