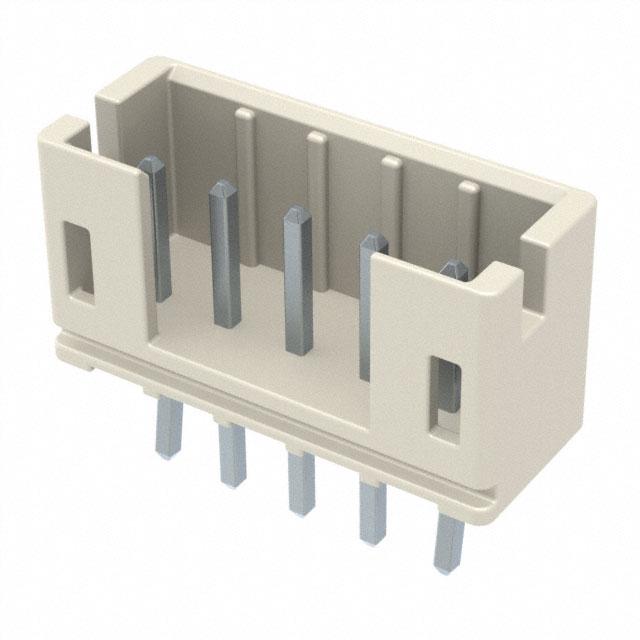

Harwin Inc. M22-2200546

M22-2200546 Harwin Inc.
Harwin Inc.

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-25°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
5
Overall Contact Length:
-
Insulation Height:
0.240" (6.10mm)
Voltage Rating:
100V
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
8.05mm
Insulation Material:
Polyamide (PA9T), Nylon 9T
Package:
Tube
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Detent Lock
Termination:
Kinked Pin, Solder
standardLeadTime:
17 Weeks
Current Rating (Amps):
2A per Contact
Contact Length - Post:
0.134" (3.40mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
M22
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
M22-220
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is M22-2200546. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 85°c operating temperature range. The product carries possible position value of 5. 0.240" (6.10mm) of insulation height. Moreover, the product has a nominal 100v voltage rating. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 8.05mm. It has a robust polyamide (pa9t), nylon 9t insulation material. It is shipped in tube package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, detent lock is the Fastening Type of the product. The product features kinked pin, solder termination style. It has a long 17 weeks standard lead time. Additionally, the product's output is 2a per contact. 0.134" (3.40mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The product is available in through hole configuration. The product m22, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to m22-220, a base product number of the product. The product is designated with the ear99 code number.
