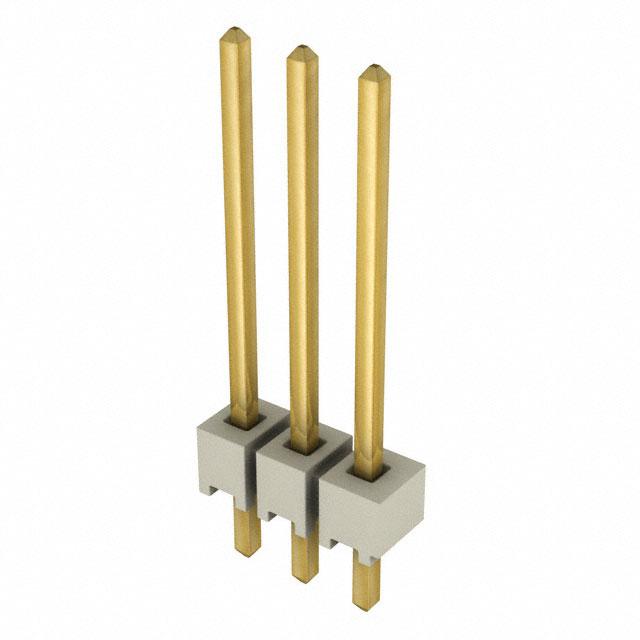

Samtec Inc. HTSW-103-15-G-S

HTSW-103-15-G-S Samtec Inc.
Samtec Inc.

Product Information

The+ HTSW-103-15-G-S is a reliable through-hole solution that ensures secure and efficient board-to-board connections for electronic designs. The header offers a 3-position configuration, making it a perfect component for precise and dependable interconnections.

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
3.00µin (0.076µm)
Number of Positions:
3
Contact Finish - Post:
Gold
Shrouding:
Unshrouded
Overall Contact Length:
0.730" (18.54mm)
Insulation Height:
0.100" (2.54mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
HTSW-103-15-G-S Models
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/6691680
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.520" (13.21mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.110" (2.79mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
HTSW
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
HTSW-103
ECCN:
EAR99
Checking for live stock

The Samtec Inc. HTSW-103-15-G-S vertical header connector offers efficient and reliable board-to-board connections with its three-position design and 2.54mm pitch. Its high-quality materials make it appropriate for a wide variety of applications.

  • High-Quality Materials and Construction:

The connector is created using sturdy materials, ensuring dependability and longevity.

  • Vertical Mounting for Space Optimisation:

The vertical mounting design of this header allows a compact PCB layout, preserving useful board space.

Application Versatility of Samtec Inc. HTSW-103-15-G-S:

The Samtec Inc. HTSW-103-15-G-S header connector finds utility in diverse industries and electronic devices, including:

  • Consumer Electronics
  • Networking and Telecommunications
  • Computing and Peripherals
  • Industrial Automation
  • Automotive Electronics.

pdf icon
HTSW, TSW Series Datasheet(Datasheets)
pdf icon
HTSW Series Drawing(Product Drawings)
