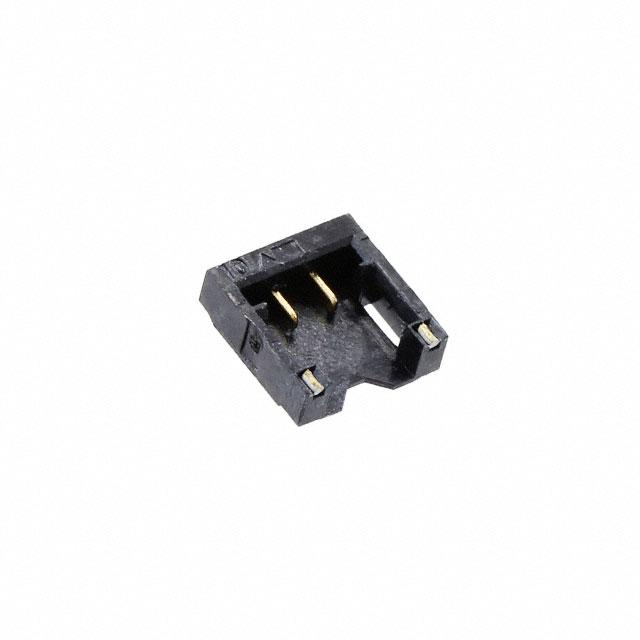

TE Connectivity AMP Connectors 1909782-1

1909782-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-25°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
2
Contact Finish - Post:
-
edacadModel:
1909782-1 Models
Overall Contact Length:
-
title:
1909782-1
Insulation Height:
0.055" (1.40mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 3 Wall
Applications:
Automotive, General Purpose, Industrial, Medical
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4731729
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Voltage Rating:
50VAC
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Friction Lock
Termination:
Solder
standardLeadTime:
11 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.047" (1.20mm)
Ingress Protection:
-
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
High Performance Interconnect (HPI)
Packaging:
Tape & Reel (TR)
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Contact Type:
Tab
Contact Material:
Phosphor Bronze
Base Product Number:
1909782
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1909782-1. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -25°c ~ 85°c operating temperature range. The product carries possible position value of 2. 0.055" (1.40mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 3 wall. The product is widely employed in automotive, general purpose, industrial, medical. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical rectangular shape. Moreover, the product has a nominal 50vac voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, flash is the "Contact Finish Thickness - Mating" of the product. Furthermore, friction lock is the Fastening Type of the product. The product features solder termination style. It has a long 11 weeks standard lead time. It has 0.047" (1.20mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product high performance interconnect (hpi), is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust liquid crystal polymer (lcp), glass filled insulation material. It has typical contact type of tab. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 1909782, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
1909782-1(Datasheets)
pdf icon
1909782-y Drawing 31/Aug/2014(PCN Design/Specification)
