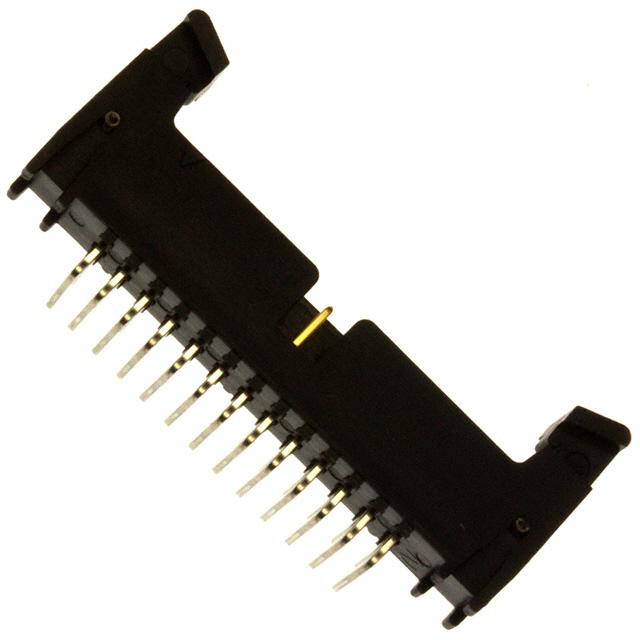

3M 155226-5302-RB

Enrgtech Part No: ET11841296
|
Manufacturer Part No:
155226-5302-RB
|
Manufacturer: 3M

Product Information

Contact Finish - Mating:

Gold

Style:

Board to Cable/Wire

HTSUS:

8536.69.4040

RoHS Status:

RoHS Compliant

Operating Temperature:

-55°C ~ 105°C

Contact Finish Thickness - Post:

200.0µin (5.08µm)

Number of Positions:

Contact Finish - Post:

Tin

edacadModel:

155226-5302-RB Models

Overall Contact Length:

title:

155226-5302-RB

Insulation Height:

0.247" (6.28mm)

Checking for live stock

This is manufactured by 3M. The manufacturer part number is 155226-5302-RB. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 105°c operating temperature range. Additionally, it features 200.0µin (5.08µm) of post thickness. The product carries possible position value of 26. It has possible tin contact post finishing. 0.247" (6.28mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. It is 0.150" (3.81mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch lock/eject hooks is the Fastening Type of the product. The product features solder termination style. It has a long 12 weeks standard lead time. Additionally, the product's output is 1.25a. 0.112" (2.84mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole, right angle configuration. The product 1552, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust liquid crystal polymer (lcp), glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 155226, a base product number of the product. The product is designated with the ear99 code number.

Interconnect Catalog(Datasheets)

1552 Series Datasheet(Datasheets)

Mult Devs - SKU # update 25/JUN/2021(PCN Part Number)
