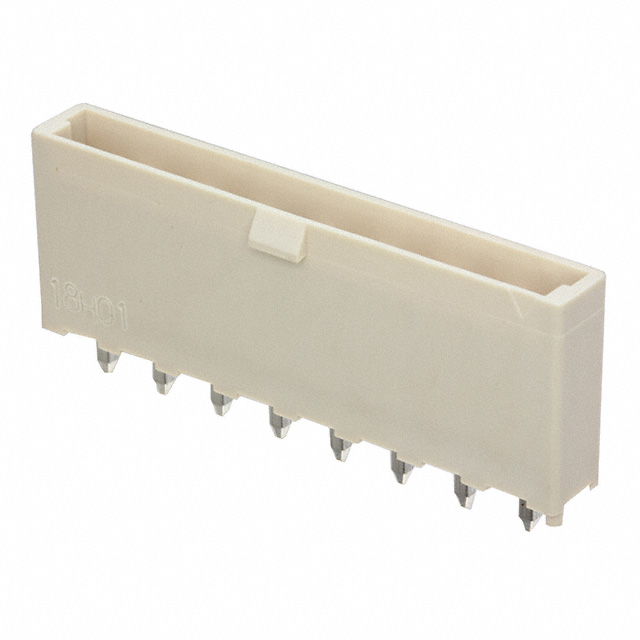

Hirose Electric Co Ltd DF5A-8P-5DSA(35)

DF5A-8P-5DSA-35- Hirose Electric Co Ltd DF5A-8P-5DSA(35)
Hirose Electric Co Ltd

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-35°C ~ 85°C
Number of Positions:
8
Contact Finish - Post:
Tin
edacadModel:
DF5A-8P-5DSA(35) Models
Overall Contact Length:
-
Insulation Height:
0.591" (15.00mm)
Insulation Color:
Beige
Shrouding:
Shrouded - 4 Wall
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/5132232
Contact Shape:
Square
Contact Finish Thickness - Mating:
39.4µin (1.00µm)
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
12 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.197" (5.00mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Series:
DF5
Packaging:
Bulk
Insulation Material:
Polyamide (PA), Nylon
Contact Material:
Brass
Base Product Number:
DF5A
ECCN:
EAR99
Checking for live stock

This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is DF5A-8P-5DSA(35). It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -35°c ~ 85°c operating temperature range. The product carries possible position value of 8. It has possible tin contact post finishing. 0.591" (15.00mm) of insulation height. In addition, beige is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 39.4µin (1.00µm) is the "Contact Finish Thickness - Mating" of the product. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 12 weeks standard lead time. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.197" (5.00mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole configuration. The product df5, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. The product is made from sturdy brass materials. Moreover, it corresponds to df5a, a base product number of the product. The product is designated with the ear99 code number.
