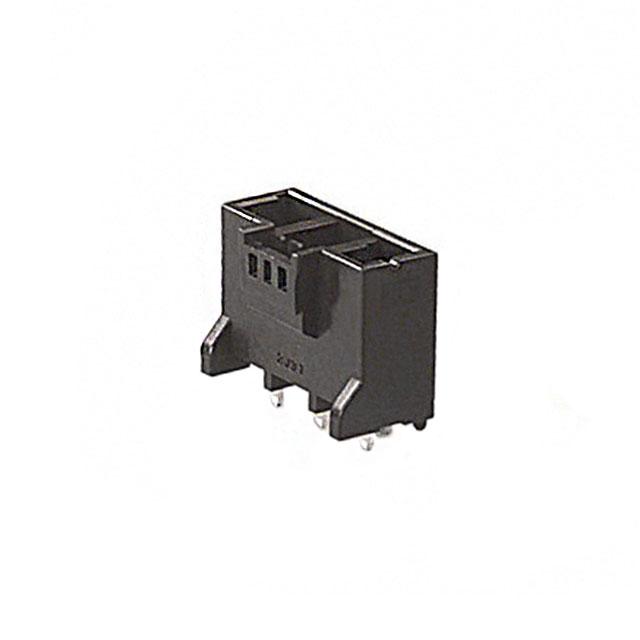

Hirose Electric Co Ltd DF22R-3P-7.92DSA(05)
Product Information
Contact Finish - Mating:
Tin-Copper
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-35°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
3
Contact Finish - Post:
-
edacadModel:
DF22R-3P-7.92DSA(05) Models
Overall Contact Length:
-
Insulation Height:
0.713" (18.10mm)
Insulation Color:
Black
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1025070
Contact Shape:
Square
Mated Stacking Heights:
25.7mm, 28.7mm
Voltage Rating:
1000V
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.354" (9.00mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
39.4µin (1.00µm)
Fastening Type:
Latch Holder
Termination:
Solder
Current Rating (Amps):
25A
Contact Length - Post:
0.146" (3.70mm)
Pitch - Mating:
0.312" (7.92mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Series:
EnerBee™ DF22
Packaging:
Bulk
Insulation Material:
Polyamide (PA), Nylon, Glass Filled
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
DF22R
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search DF22R-3P-7.92DSA(05) on website for other similar products.
We accept all major payment methods for all products including ET11818628. Please check your shopping cart at the time of order.
You can order Hirose Electric Co Ltd brand products with DF22R-3P-7.92DSA(05) directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Hirose Electric Co Ltd DF22R-3P-7.92DSA(05). You can also check on our website or by contacting our customer support team for further order details on Hirose Electric Co Ltd DF22R-3P-7.92DSA(05).
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11818628 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Hirose Electric Co Ltd" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11818628.
Yes. We ship DF22R-3P-7.92DSA(05) Internationally to many countries around the world.
This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is DF22R-3P-7.92DSA(05). It has nice contact finishing of tin-copper. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -35°c ~ 85°c operating temperature range. The product carries possible position value of 3. 0.713" (18.10mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The mated stacking heights of a bespoke product includes 25.7mm, 28.7mm. Moreover, the product has a nominal 1000v voltage rating. header Connector type offer robust functionality. It is 0.354" (9.00mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 39.4µin (1.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 25a. 0.146" (3.70mm) is the given possible contact length (post) values. It has 0.312" (7.92mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole configuration. The product enerbee™ df22, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa), nylon, glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to df22r, a base product number of the product. The product is designated with the ear99 code number.
