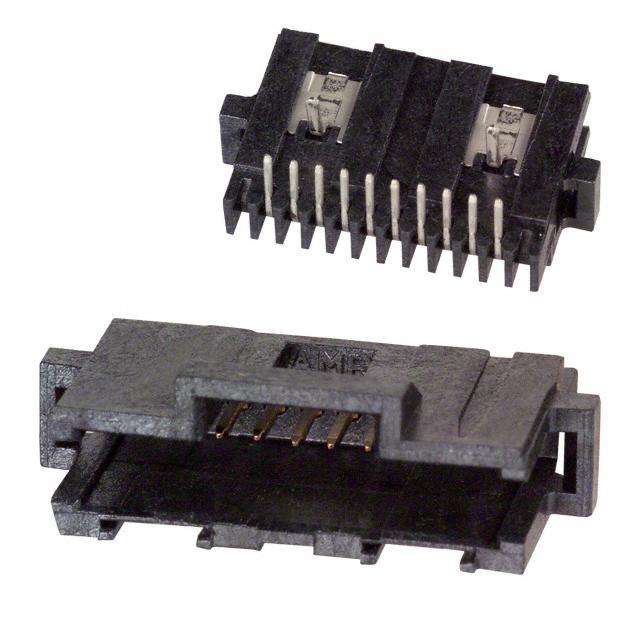

TE Connectivity AMP Connectors 104074-1

104074-1 TE Connectivity AMP Connectors
104074-1
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
Not applicable
Operating Temperature:
-65°C ~ 105°C
Number of Positions:
10
Contact Finish - Post:
Tin-Lead
edacadModel:
104074-1 Models
Overall Contact Length:
-
Insulation Height:
0.190" (4.83mm)
Insulation Color:
Black
REACH Status:
REACH Affected
Shrouding:
Shrouded - 2 Wall
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/291701
Contact Shape:
Circular
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Voltage Rating:
30VAC
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.125" (3.18mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
33 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.100" (2.54mm)
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole, Right Angle
Series:
AMPMODU System 50
Packaging:
Bulk
Insulation Material:
Thermoplastic
Contact Material:
Copper Alloy
Base Product Number:
104074
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 104074-1. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is not applicable. The product has -65°c ~ 105°c operating temperature range. The product carries possible position value of 10. It has possible tin-lead contact post finishing. 0.190" (4.83mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach affected. Furthermore, a bespoke product features shrouded - 2 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 30vac voltage rating. header Connector type offer robust functionality. It is 0.125" (3.18mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 33 weeks standard lead time. 0.100" (2.54mm) is the given possible contact length (post) values. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole, right angle configuration. The product ampmodu system 50, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust thermoplastic insulation material. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 104074, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Multiple Devices Manufacturing Processes 08/Aug/2019(PCN Assembly/Origin)
pdf icon
Multiple Devices Document Clarification 14/Dec/2017(PCN Design/Specification)
pdf icon
Multiple Devices Material 23/Dec/2014(PCN Other)
