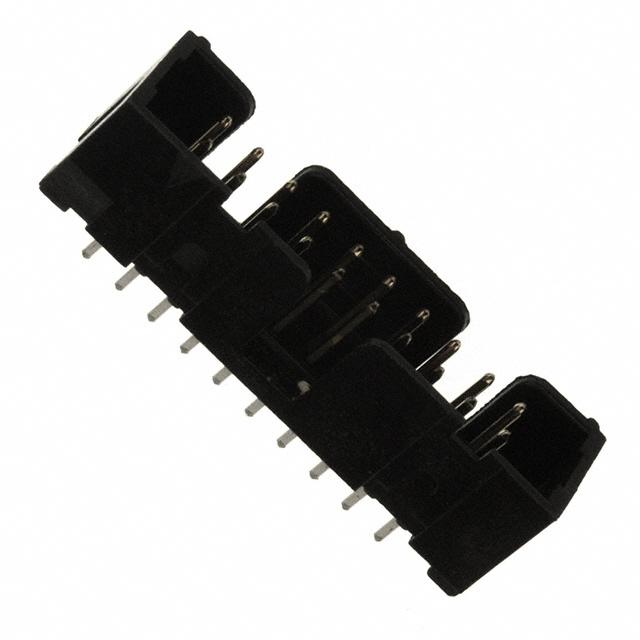

3M D2520-6002-AR

D2520-6002-AR 3M
D2520-6002-AR
3M

Product Information

Shrouded/Unshrouded:
Shrouded
Current Rating:
1.75A
Mounting Type:
Through Hole
Series:
D2500
Body Orientation:
Straight
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
2
Contact Plating:
Gold
Pitch:
2.54mm
Number of Contacts:
20
Contact Material:
Brass
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C
Number of Positions:
20
Overall Contact Length:
0.492" (12.50mm)
Insulation Height:
0.253" (6.43mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.243" (6.17mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
8 Weeks
Current Rating (Amps):
1.75A
Contact Length - Post:
0.112" (2.84mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
D2500
Packaging:
Tray
Insulation Material:
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Material:
Brass
Base Product Number:
D2520
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by 3M. The manufacturer part number is D2520-6002-AR. It is supplied as shrouded. The product has a current rating of 1.75a. The product is available in through hole configuration. The product d2500, is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. It allows wire to board connector system. It comes in 2 of rows. The high-quality gold is used as contact plating material. Moreover, the product is 2.54mm. The product contains 20 contacts. The product is made from sturdy brass materials. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 105°c operating temperature range. The product carries possible position value of 20. The product has a 0.492" (12.50mm) of overall contact lentgh. 0.253" (6.43mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 10.0µin (0.25µm) is the "Contact Finish Thickness - Mating" of the product. It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.243" (6.17mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 8 weeks standard lead time. Additionally, the product's output is 1.75a. 0.112" (2.84mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. In addition, tray is the available packaging type of the product. It has a robust polycyclohexylenedimethylene terephthalate (pct), polyester, glass filled insulation material. Moreover, it corresponds to d2520, a base product number of the product. The product is designated with the ear99 code number.
