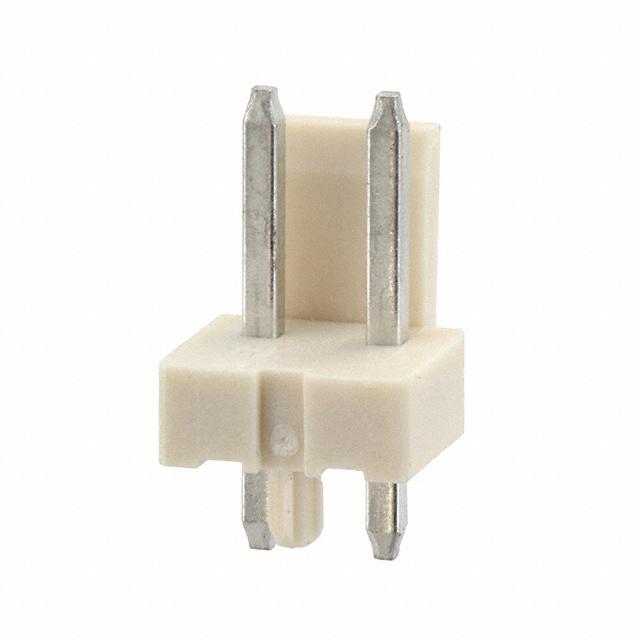

TE Connectivity AMP Connectors 1744429-2

1744429-2 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-25°C ~ 105°C
Contact Finish Thickness - Post:
120.0µin (3.05µm)
Number of Positions:
2
Contact Finish - Post:
Tin
edacadModel:
1744429-2 Models
Overall Contact Length:
0.575" (14.60mm)
Insulation Height:
0.127" (3.22mm)
Insulation Color:
Natural
REACH Status:
Vendor Undefined
Shrouding:
Shrouded - 1 Wall
Applications:
General Purpose, Industrial, Lighting
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4730111
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
250VAC
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.303" (7.70mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
120.0µin (3.05µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
7.5A
Contact Length - Post:
0.145" (3.68mm)
Pitch - Mating:
0.156" (3.96mm)
Ingress Protection:
-
Features:
Board Guide, Glow Wire Compliant
Mounting Type:
Through Hole
Series:
Economy Power
Packaging:
Bulk
Insulation Material:
Polyamide (PA), Nylon
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
1744429
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1744429-2. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 105°c operating temperature range. Additionally, it features 120.0µin (3.05µm) of post thickness. The product carries possible position value of 2. It has possible tin contact post finishing. The product has a 0.575" (14.60mm) of overall contact lentgh. 0.127" (3.22mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is vendor undefined. Furthermore, a bespoke product features shrouded - 1 wall. The product is widely employed in general purpose, industrial, lighting. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 250vac voltage rating. header Connector type offer robust functionality. It is 0.303" (7.70mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 120.0µin (3.05µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is 7.5a. 0.145" (3.68mm) is the given possible contact length (post) values. It has 0.156" (3.96mm) of pitch-mating value. The splendid features of the product include board guide, glow wire compliant. The product is available in through hole configuration. The product economy power, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 1744429, a base product number of the product. The product is designated with the ear99 code number.
