Harwin Inc. M50-3610842R

M50-3610842R Harwin Inc.
Harwin Inc.

Product Information

Manufacturer Standard Lead Time:
12 Weeks
Style:
Board to Board or Cable
Detailed Description:

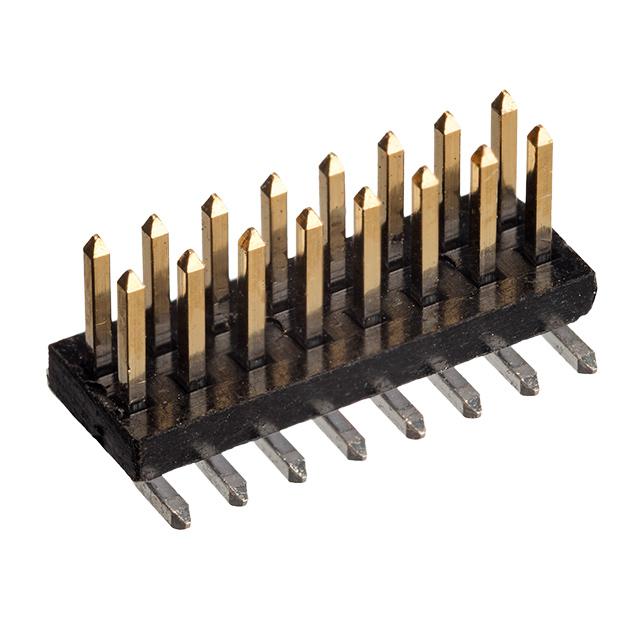

Connector Header Surface Mount 16 position 0.050" (1.27mm)
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
80.0µin (2.03µm)
Number of Positions:
16
Contact Finish - Mating:
Gold
Insulation Height:
0.039" (1.00mm)
Insulation Color:
Black
Shrouding:
Unshrouded
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
Harwin Inc.
Voltage Rating:
250V
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Header
Contact Length - Mating:
0.118" (3.00mm)
Number of Positions Loaded:
All
Contact Finish Thickness - Mating:
1.00µin (0.025µm)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
1A
Pitch - Mating:
0.050" (1.27mm)
Features:
Board Guide, Pick and Place
Mounting Type:
Surface Mount
Series:
Archer M50
Packaging:
Cut Tape (CT)
Customer Reference:
Contact Type:
Male Pin
Contact Finish - Post:
Tin
Insulation Material:
Thermoplastic
Contact Material:
Brass
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is M50-3610842R. It has typical 12 weeks of manufacturer standard lead time. Additionally, the product is designed with board to board or cable Style. It features connector header surface mount 16 position 0.050" (1.27mm). The product has -55°c ~ 105°c operating temperature range. Additionally, it features 80.0µin (2.03µm) of post thickness. The product carries possible position value of 16. It has nice contact finishing of gold. 0.039" (1.00mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features unshrouded. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The harwin inc.'s product offers user-desired applications. Moreover, the product has a nominal 250v voltage rating. It carries 0.050" (1.27mm) of row spacing. header Connector type offer robust functionality. It is 0.118" (3.00mm) contact mated. However, all is the Number of Positions Loaded. However, 1.00µin (0.025µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 1a. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board guide, pick and place. The product is available in surface mount configuration. The product archer m50, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. It has typical contact type of male pin. It has possible tin contact post finishing. It has a robust thermoplastic insulation material. The product is made from sturdy brass materials.

pdf icon
RoHS Cert M50-3610842R(Environmental Information)
pdf icon
M50-361 design chg 26/OCT/2020(PCN Design/Specification)
pdf icon
M50-361xx42R Drawing(Datasheets)
pdf icon
M50,M52 Series Spec Sheet(Datasheets)
