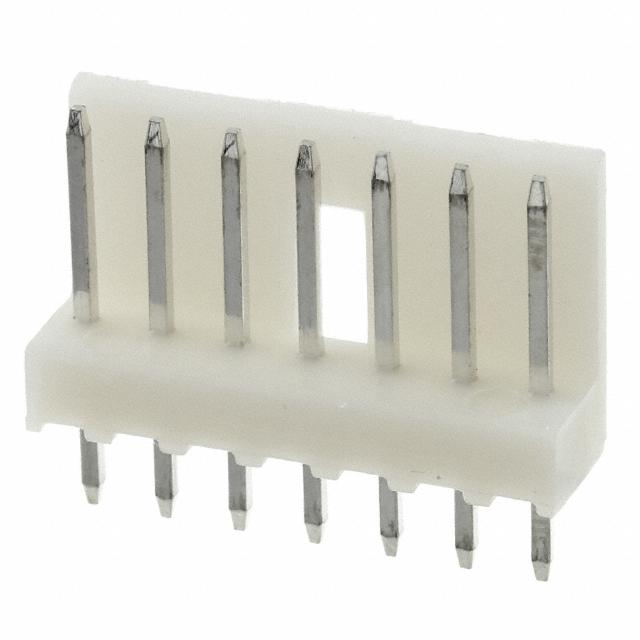

TE Connectivity AMP Connectors 171825-7

171825-7 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
31.5µin (0.80µm)
Number of Positions:
7
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 1 Wall
Overall Contact Length:
0.551" (14.00mm)
Insulation Height:
0.409" (10.40mm)
Voltage Rating:
250VAC, 350VDC
REACH Status:
REACH Unaffected
edacadModel:
171825-7 Models
Applications:
General Purpose
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2309425
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA66), Nylon 6/6
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.295" (7.49mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
31.5µin (0.80µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
2A
Contact Length - Post:
0.142" (3.60mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
EI
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
171825
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 171825-7. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Additionally, it features 31.5µin (0.80µm) of post thickness. The product carries possible position value of 7. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 1 wall. The product has a 0.551" (14.00mm) of overall contact lentgh. 0.409" (10.40mm) of insulation height. Moreover, the product has a nominal 250vac, 350vdc voltage rating. In addition, it is reach unaffected. The product is widely employed in general purpose. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa66), nylon 6/6 insulation material. It is shipped in bulk package . header Connector type offer robust functionality. It is 0.295" (7.49mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 31.5µin (0.80µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is 2a. 0.142" (3.60mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The product is available in through hole configuration. The product ei, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 171825, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
(y)-171825-y Housing Material 28/Jun/2016(PCN Design/Specification)
pdf icon
171825-7(Datasheets)
pdf icon
Packaging Process chg 21/JAN/2022(PCN Packaging)
