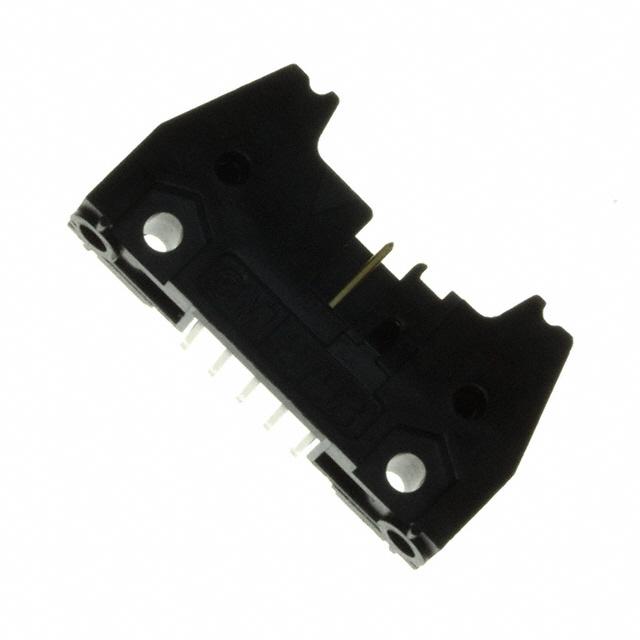

3M D3793-5002-AR

D3793-5002-AR 3M
3M

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
39.4µin (1.00µm)
Number of Positions:
10
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.340" (8.64mm)
Voltage Rating:
-
edacadModel:
D3793-5002-AR Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1886352
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Package:
Tray
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
27 Weeks
Current Rating (Amps):
1.75A
Contact Length - Post:
0.112" (2.84mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot, Mounting Flange
Mounting Type:
Through Hole, Right Angle
Series:
D3000
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
D3793
ECCN:
EAR99
Checking for live stock

This is manufactured by 3M. The manufacturer part number is D3793-5002-AR. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 105°c operating temperature range. Additionally, it features 39.4µin (1.00µm) of post thickness. The product carries possible position value of 10. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.340" (8.64mm) of insulation height. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polycyclohexylenedimethylene terephthalate (pct), polyester, glass filled insulation material. It is shipped in tray package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.240" (6.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 10.0µin (0.25µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 27 weeks standard lead time. Additionally, the product's output is 1.75a. 0.112" (2.84mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot, mounting flange. The product is available in through hole, right angle configuration. The product d3000, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to d3793, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Interconnect Catalog(Datasheets)
pdf icon
D3000 Series(Datasheets)
pdf icon
Mult Devs - SKU # update 24/JUN/2021(PCN Part Number)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search D3793-5002-AR on website for other similar products.
We accept all major payment methods for all products including ET11620350. Please check your shopping cart at the time of order.
You can order 3M brand products with D3793-5002-AR directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 3M D3793-5002-AR. You can also check on our website or by contacting our customer support team for further order details on 3M D3793-5002-AR.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11620350 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "3M" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11620350.
Yes. We ship D3793-5002-AR Internationally to many countries around the world.
