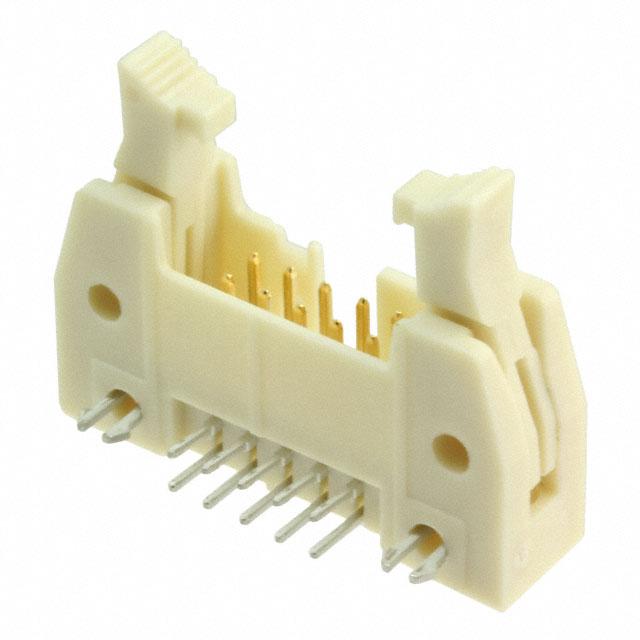

HARTING 09195106953

09195106953 HARTING
HARTING

Product Information

Contact Finish - Mating:
-
Style:
Board to Cable/Wire
Contact Finish - Post:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
10
Overall Contact Length:
-
Insulation Height:
0.335" (8.51mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Beige
Contact Shape:
Square
Mated Stacking Heights:
-
Package:
Bulk
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Lock/Eject Hooks, Long
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
0.114" (2.90mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Board Lock, Keying Slot
Mounting Type:
Through Hole, Right Angle
Series:
SEK
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Insulation Material:
Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
ECCN:
EAR99
Checking for live stock

This is manufactured by HARTING. The manufacturer part number is 09195106953. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 10. 0.335" (8.51mm) of insulation height. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, beige is the insulation color of the product. It has a typical square shape. It is shipped in bulk package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.240" (6.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch lock/eject hooks, long is the Fastening Type of the product. The product features solder termination style. 0.114" (2.90mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include board lock, keying slot. The product is available in through hole, right angle configuration. The product sek, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. It has a robust polycyclohexylenedimethylene terephthalate (pct), glass filled insulation material. The product is designated with the ear99 code number.
