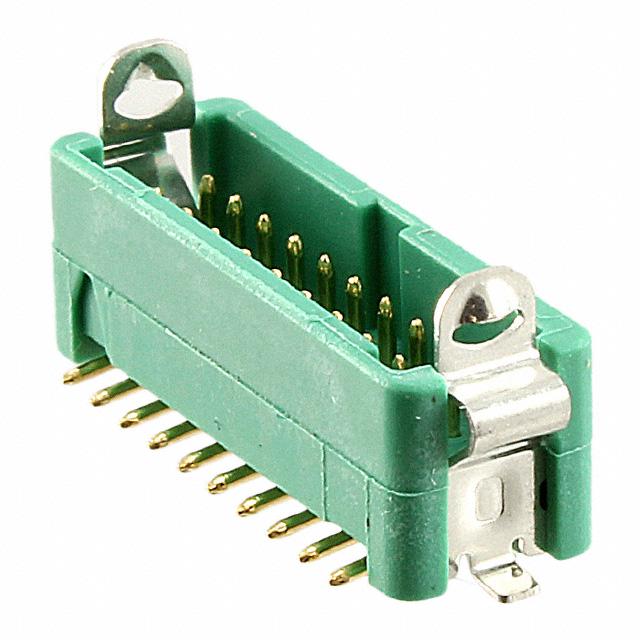

Harwin Inc. G125-MS12005L3P

G125-MS12005L3P Harwin Inc.
G125-MS12005L3P
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 150°C
Contact Finish Thickness - Post:
-
Number of Positions:
20
Contact Finish - Post:
-
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.193" (4.90mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
G125-MS12005L3P Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3919323
Insulation Color:
Green
Contact Shape:
Circular
Mated Stacking Heights:
7.35mm, 7.45mm, 7.8mm
Insulation Material:
Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Package:
Strip
Row Spacing - Mating:
0.049" (1.25mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
8.00µin (0.203µm)
Fastening Type:
Latch Lock
Termination:
Solder
standardLeadTime:
17 Weeks
Current Rating (Amps):
2A per Contact
Contact Length - Post:
-
Pitch - Mating:
0.049" (1.25mm)
Ingress Protection:
-
Features:
Pick and Place, Solder Retention
Mounting Type:
Surface Mount
Series:
Gecko
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
G125-MS1
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is G125-MS12005L3P. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 150°c operating temperature range. The product carries possible position value of 20. Furthermore, a bespoke product features shrouded - 4 wall. 0.193" (4.90mm) of insulation height. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, green is the insulation color of the product. It has a typical circular shape. The mated stacking heights of a bespoke product includes 7.35mm, 7.45mm, 7.8mm. It has a robust polyamide (pa4t), nylon 4t, glass filled, halogen free insulation material. It is shipped in strip package . It carries 0.049" (1.25mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 8.00µin (0.203µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch lock is the Fastening Type of the product. The product features solder termination style. It has a long 17 weeks standard lead time. Additionally, the product's output is 2a per contact. It has 0.049" (1.25mm) of pitch-mating value. The splendid features of the product include pick and place, solder retention. The product is available in surface mount configuration. The product gecko, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to g125-ms1, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
G125-MS10605L0P(Product Brief)
pdf icon
G125-MS1xx05L3P Drawing(2D Drawings)
pdf icon
Harwin REACH(Environmental Information)
pdf icon
G125-2040696L0(Datasheets)
pdf icon
G125 Spec Sheet(Design Resources)
