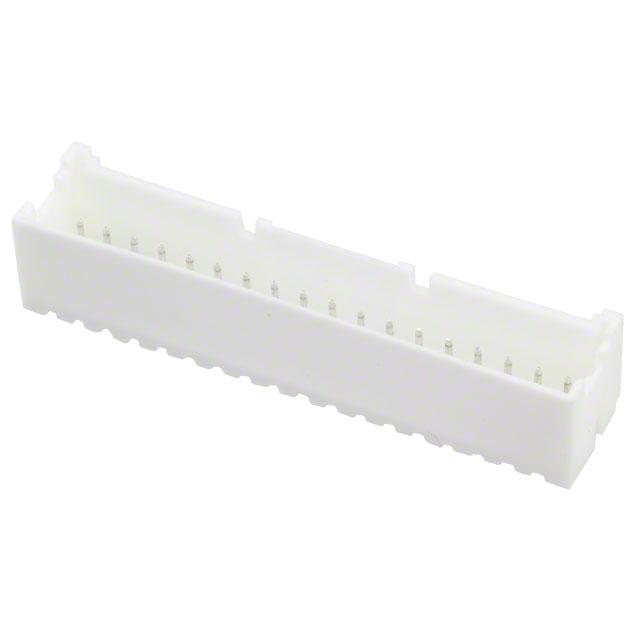

TE Connectivity AMP Connectors 3-1969582-6

3-1969582-6 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
36
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.386" (9.80mm)
Voltage Rating:
250VAC
REACH Status:
Vendor Undefined
edacadModel:
3-1969582-6 Models
Applications:
General Purpose, Industrial, Lighting
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4897746
Insulation Color:
White
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA66), Nylon 6/6
Package:
Bulk
Row Spacing - Mating:
0.098" (2.50mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Friction Lock
Termination:
Kinked Pin, Solder
standardLeadTime:
23 Weeks
Current Rating (Amps):
4.2A
Contact Length - Post:
0.134" (3.40mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
Economy Power 2.5
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
1969582
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 3-1969582-6. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 105°c operating temperature range. The product carries possible position value of 36. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.386" (9.80mm) of insulation height. Moreover, the product has a nominal 250vac voltage rating. In addition, it is vendor undefined. The product is widely employed in general purpose, industrial, lighting. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, white is the insulation color of the product. It has a typical circular shape. It has a robust polyamide (pa66), nylon 6/6 insulation material. It is shipped in bulk package . It carries 0.098" (2.50mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, friction lock is the Fastening Type of the product. The product features kinked pin, solder termination style. It has a long 23 weeks standard lead time. Additionally, the product's output is 4.2a. 0.134" (3.40mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The product is available in through hole configuration. The product economy power 2.5, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 1969582, a base product number of the product. The product is designated with the ear99 code number.
