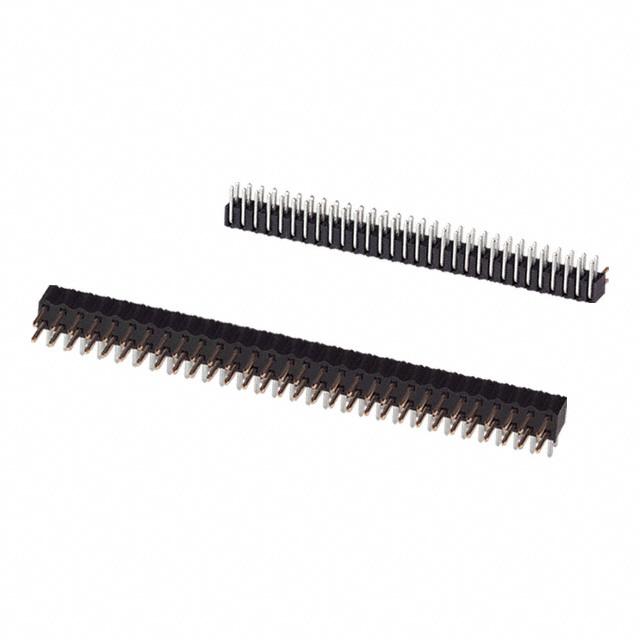

3M 151260-7422-RB

151260-7422-RB 3M
3M

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Number of Positions:
60
Overall Contact Length:
-
Insulation Height:
0.165" (4.20mm)
Insulation Color:
Black
Shrouding:
Unshrouded
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
0.152" (3.86mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
1A
Contact Length - Post:
0.118" (3.00mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
1512
Packaging:
Bulk
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Contact Type:
Male Pin
ECCN:
EAR99
Base Product Number:
151260
Contact Material:
Copper Alloy
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 151260-7422-RB. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product has -55°c ~ 105°c operating temperature range. Additionally, it features 200.0µin (5.08µm) of post thickness. The product carries possible position value of 60. 0.165" (4.20mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features unshrouded. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. It is 0.152" (3.86mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 1a. 0.118" (3.00mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product 1512, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust liquid crystal polymer (lcp), glass filled insulation material. It has typical contact type of male pin. The product is designated with the ear99 code number. Moreover, it corresponds to 151260, a base product number of the product. The product is made from sturdy copper alloy materials.
